Description;

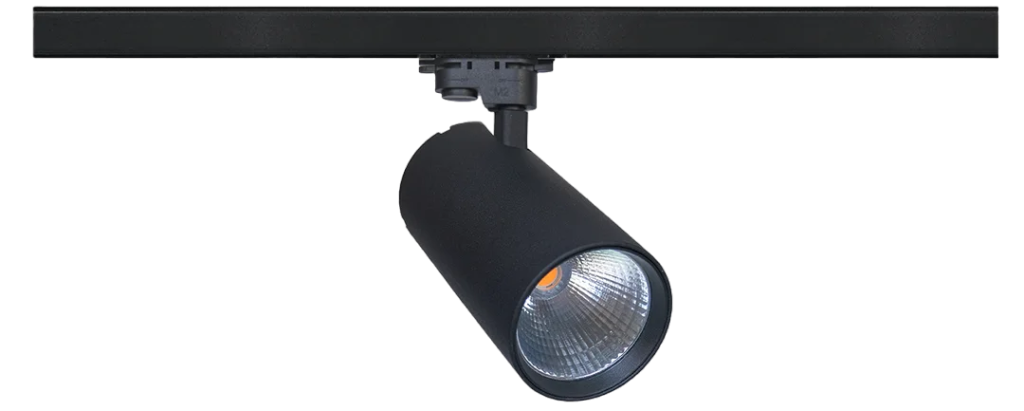

- Adjustable spotlight with LED driver integrated to the housing. Adjustable structure allows a 350° vertical and 180° horizontal rotation. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.
Technical Drawing
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | 3-circuit track mounted |
| Diffuser: | Transparent safety glass |
| Optics: | Aluminium reflector |
| Electrical |
| Driver: | LED driver inside the body. |
| Light Source: | COB LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| Casambi |
| Bluetooth control |
| Watt – lumen – efficiency options |
| Optical: |
| Beam angle: 15-30 degree options |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-106-020-827 | 20W | 2700K | 1900 | 0,75 Kg. | 95×195 |
| ITL-106-020-830 | 20W | 3000K | 2040 | 0,75 Kg. | 95×195 |
| ITL-106-020-840 | 20W | 4000K | 2150 | 0,75 Kg. | 95×195 |
| ITL-106-020-865 | 20W | 6500K | 2210 | 0,75 Kg. | 95×195 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-106-030-827 | 30W | 2700K | 3150 | 0,75 Kg. | 95×195 |
| ITL-106-030-830 | 30W | 3000K | 3210 | 0,75 Kg. | 95×195 |
| ITL-106-030-840 | 30W | 4000K | 3290 | 0,75 Kg. | 95×195 |
| ITL-106-030-865 | 30W | 6500K | 3350 | 0,75 Kg. | 95×195 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-106-036-827 | 36W | 2700K | 3750 | 0,75 Kg. | 95×195 |
| ITL-106-036-830 | 36W | 3000K | 3850 | 0,75 Kg. | 95×195 |
| ITL-106-036-840 | 36W | 4000K | 3950 | 0,75 Kg. | 95×195 |
| ITL-106-036-865 | 36W | 6500K | 4050 | 0,75 Kg. | 95×195 |
