Description;
- Linear spot light used in 48V magnetic track system for easy installation and easy adaptation to design changes in the environments used. Dark optics used for glare control and sustains efficient object lighting.

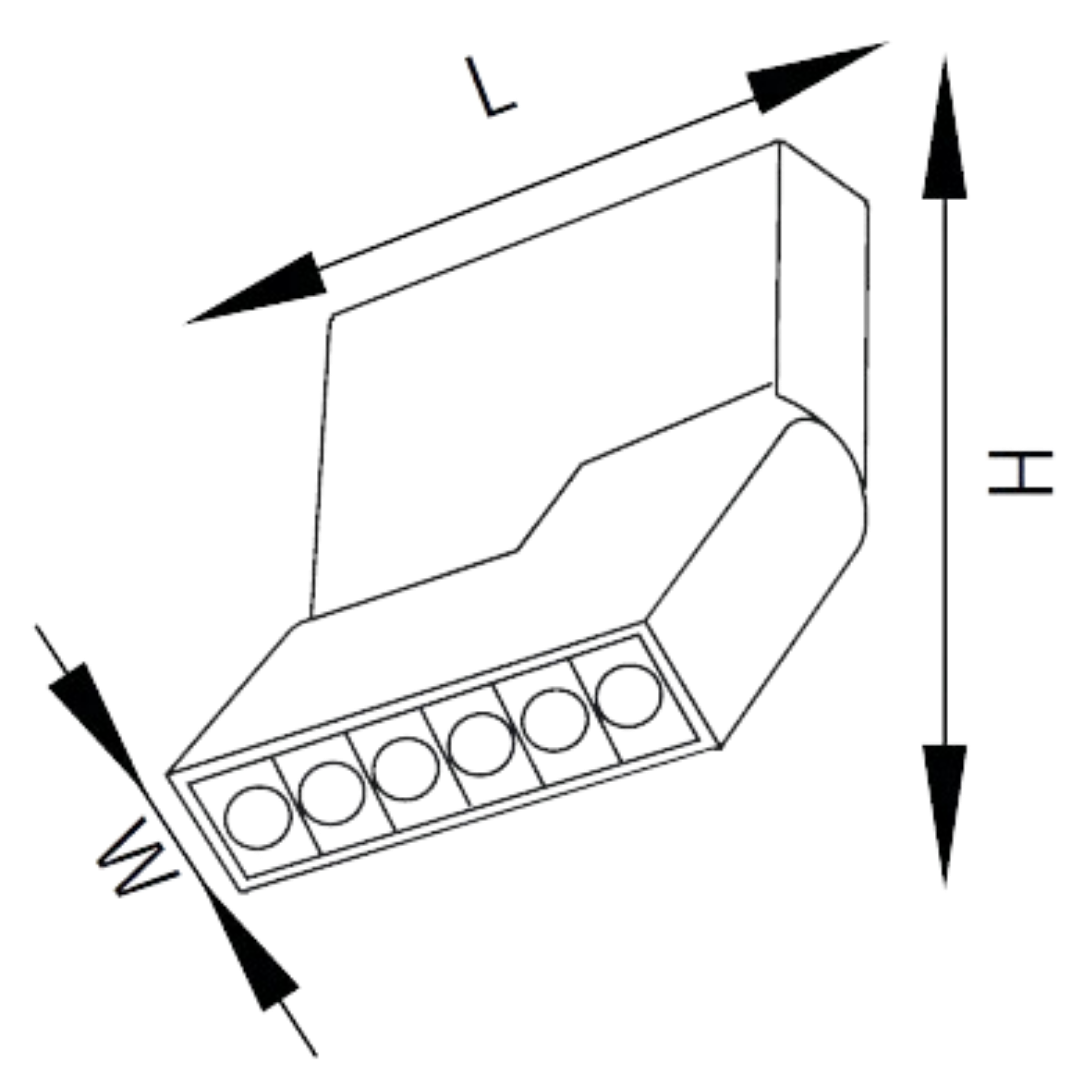

Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Dark reflector with anti-glare feature. |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | 48V Magnetic track mounted |
| Driver: | LED driver with external connection |
| Light Source | COB LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temp: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| Casambi |
| Bluetooth control |

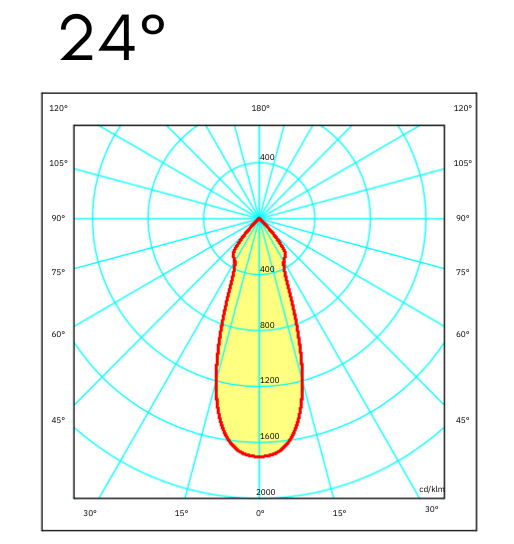

| Optical: |
| Beam angle: 15-30-45 degrees |
| UGR:< 16 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-307-006-827 | 6W | 2700K | 515 | 0,3 kg. | 22x112x44 |
| IMS-307-006-830 | 6W | 3000K | 590 | 0,3 kg. | 22x112x44 |
| IMS-307-006-840 | 6W | 4000K | 650 | 0,3 kg. | 22x112x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-307-012-827 | 12W | 2700K | 1030 | 0,6 kg. | 22x219x44 |
| IMS-307-012-830 | 12W | 3000K | 1200 | 0,6 kg. | 22x219x44 |
| IMS-307-012-840 | 12W | 4000K | 1360 | 0,6 kg. | 22x219x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-307-018-827 | 18W | 2700K | 1800 | 1,0 kg. | 22x326x44 |
| IMS-307-018-830 | 18W | 3000K | 1920 | 1,0 kg. | 22x326x44 |
| IMS-307-018-840 | 18W | 4000K | 2000 | 1,0 kg. | 22x326x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-307-024-827 | 24W | 2700K | 2385 | 1,2 kg. | 22x438x44 |
| IMS-307-024-830 | 24W | 3000K | 2450 | 1,2 kg. | 22x438x44 |
| IMS-307-024-840 | 24W | 4000K | 2530 | 1,2 kg. | 22x438x44 |
