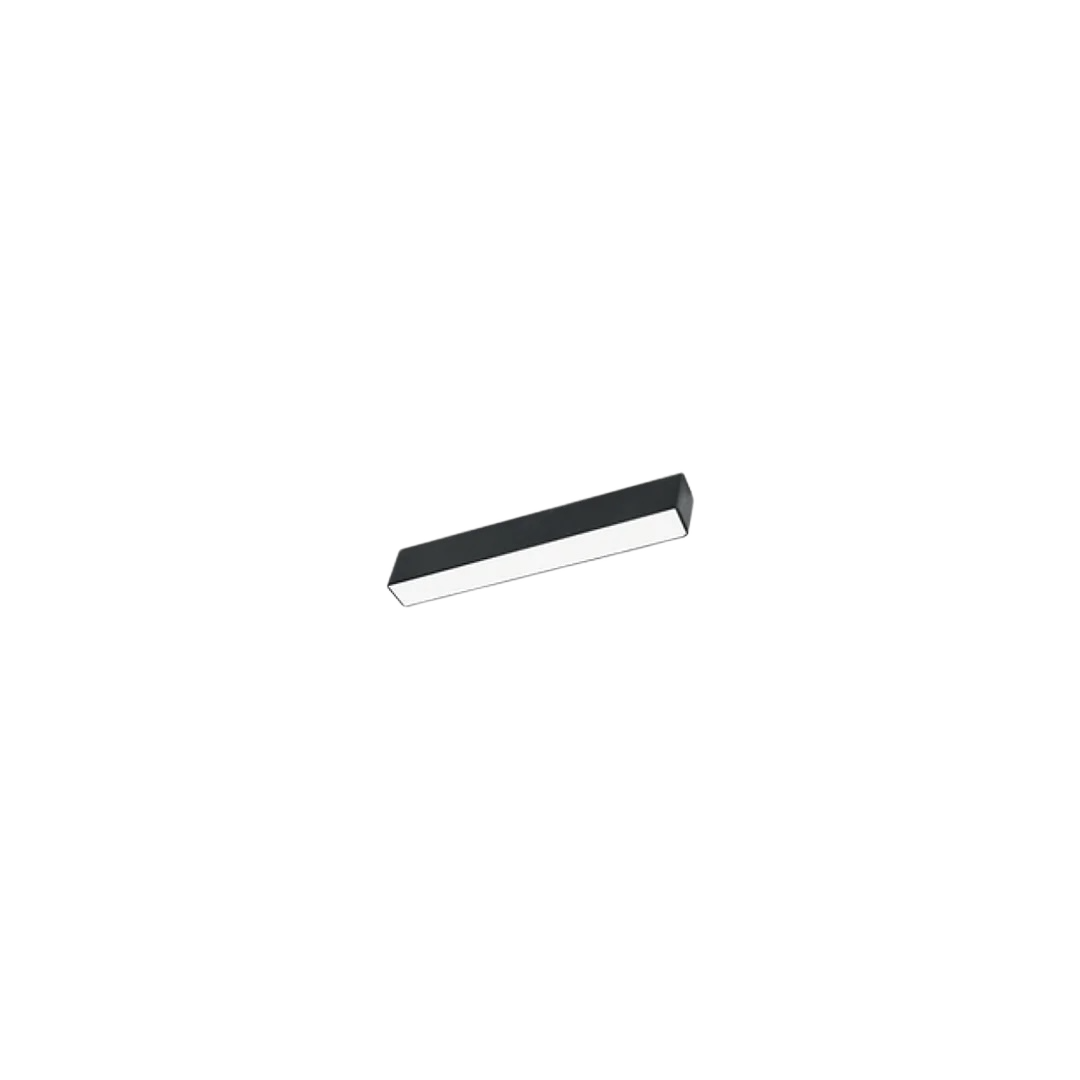

MAGNA-L I
- Açıklama
Description;
- Linear spot light used in 48V magnetic track system for easy installation and easy adaptation to design changes in the environments used. Opal micro-prismatic diffuser for homogeneous light with glare control.
Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Opal plexiglass with micro-prismatic structure |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | 48V Magnetic track mounted |
| Driver: | LED driver with external connection |
| Light Source | SMD LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temp: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| DALI |
| Casambi |
| Bluetooth control |
| Optical: |
| Beam angle: 120 degrees |
| UGR:< 19 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-304-018-827 | 18W | 2700K | 1760 | 0,5 kg. | 22x450x44 |
| IMS-304-018-830 | 18W | 3000K | 1810 | 0,5 kg. | 22x450x44 |
| IMS-304-018-840 | 18W | 4000K | 1880 | 0,5 kg. | 22x450x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-304-024-827 | 24W | 2700K | 2350 | 0,9 kg. | 22x600x44 |
| IMS-304-024-830 | 24W | 3000K | 2430 | 0,9 kg. | 22x600x44 |
| IMS-304-024-840 | 24W | 4000K | 2500 | 0,9 kg. | 22x600x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-304-036-827 | 36W | 2700K | 3500 | 1,2 kg. | 22x900x44 |
| IMS-304-036-830 | 36W | 3000K | 3640 | 1,2 kg. | 22x900x44 |
| IMS-304-036-840 | 36W | 4000K | 3715 | 1,2 kg. | 22x900x44 |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WxLxH) (mm) |
| IMS-304-048-827 | 48W | 2700K | 4670 | 1,4 kg. | 22x1200x44 |
| IMS-304-048-830 | 48W | 3000K | 4810 | 1,4 kg. | 22x1200x44 |
| IMS-304-048-840 | 48W | 4000K | 4900 | 1,4 kg. | 22x1200x44 |
