Technical Drawing
Mechanical
| Body: | Aluminium |
| Finish: | Electrostatic powder paint |
| Optics: | Singel lenses |
| Diffuser: | Transparent safety glass |
| Installation: | Ceiling recessed mounted |
Electrical
| Light Source: | Mid Power LED |
| Frequency: | 220–240V 50/60 Hz |
| Lifetime: | 50,000 hours |
| Power Factor: | PF > 0.90 |
| Operating Temperature: | -20°C / +50°C |
Optical
| Light Effect: | Fixed |

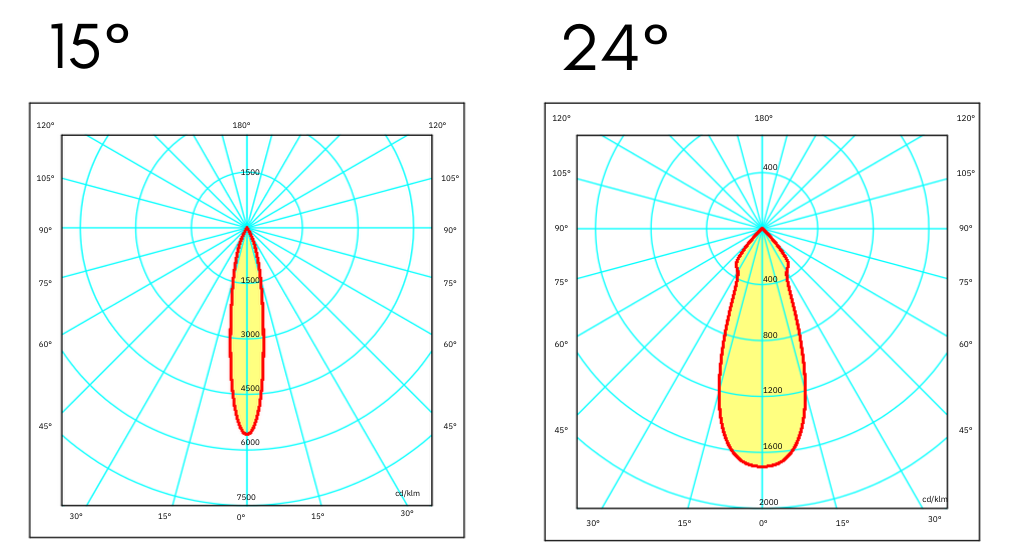

| Beam Angle: | 15° / 24° |
| UGR: | <21 |
| CRI: | >80 |
| McAdams Step: | <3 |
Options
| RAL Selection: | Available |
| CRI Option: | CRI > 90 |
| Dimming: | DALI |
| Control: | Casambi – Bluetooth control |
Technical Chart
| Art. No. | Power (W) | Lumen | Colour Temp (K) | Dimensions (Q×H) mm | Cut-out (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| ISS-469-002 | 2W | 140* | 2700K–6500K | 31×25 | 27,5 | 0,10 kg |
| ISS-470-003 | 3W | 210* | 2700K–6500K | 44×25 | 35 | 0,12 kg |
