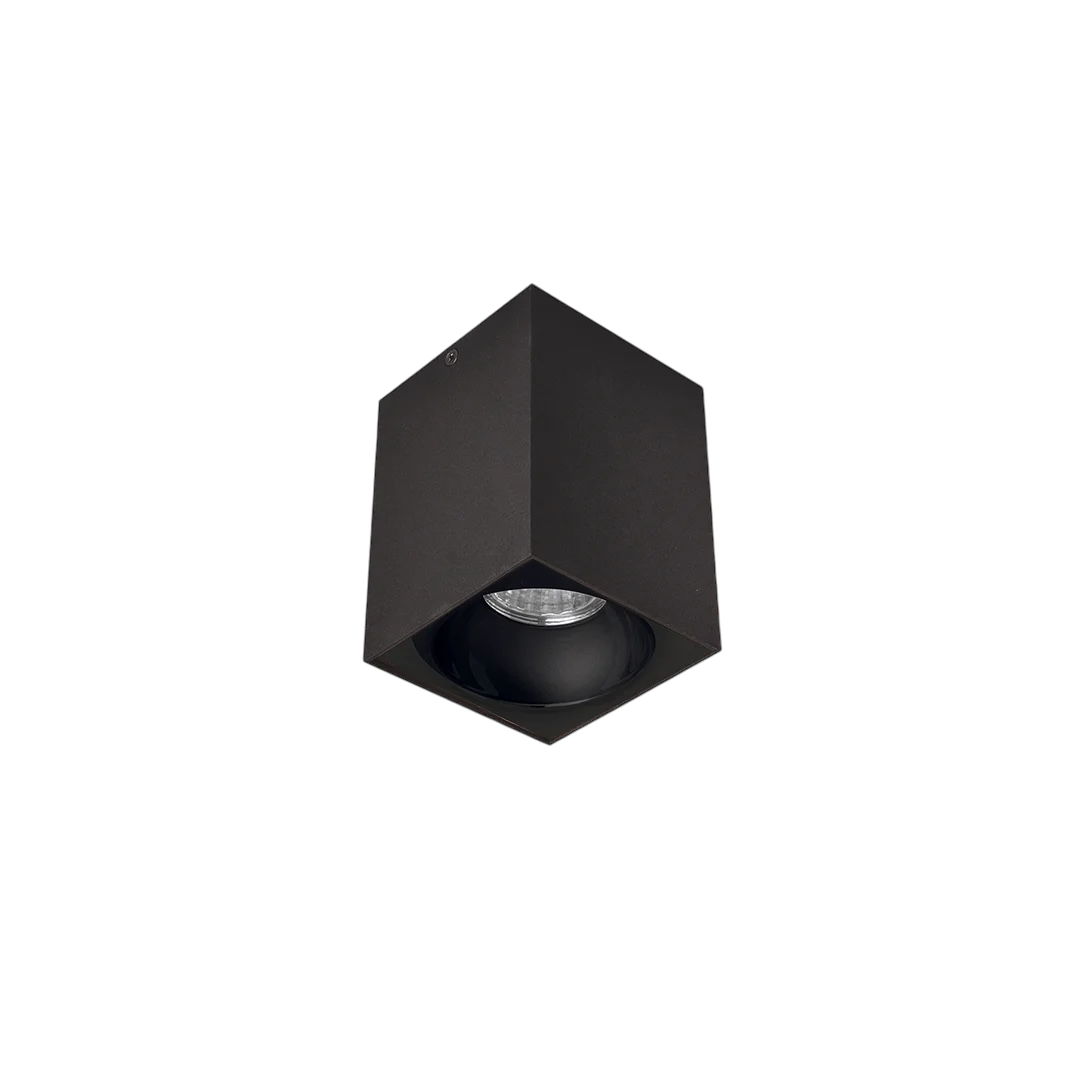

Eros S
- Açıklama
Description;
- Surface mounted / suspended spotlight with different sizes, watt and lumen options, perfect to fit the architecture or areas used. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.

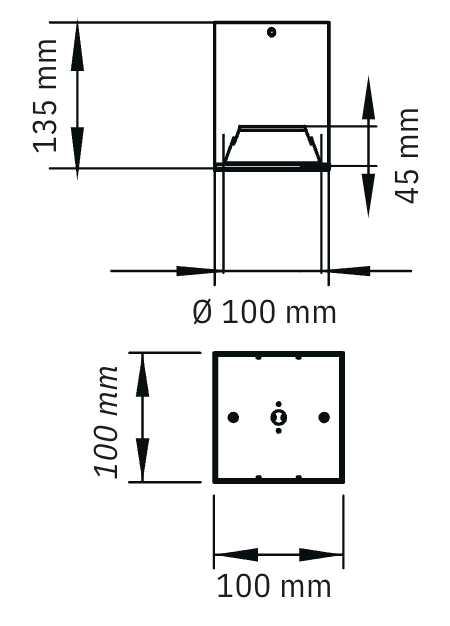

Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector |
| Diffuser: | Transparent safety glass |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Surface mounted |
| Driver: | Integrated LED driver with Pf>0.9 |
| Light Source | COB LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| Suspension accessory |
| Optical: |
| Beam angle: 15-30 degree |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (WLxH) (mm) |
| ISS-444-010-827 | 10 | 2700K | 960 | 0,6 kg. | 100x100x135 |
| ISS-444-010-830 | 10 | 3000K | 1010 | 0,6 kg. | 100x100x135 |
| ISS-444-010-840 | 10 | 4000K | 1080 | 0,6 kg. | 100x100x135 |
| ISS-444-010-865 | 10 | 6500K | 1150 | 0,6 kg. | 100x100x135 |
| ISS-444-000 | GU10 | – | – | – | 100x100x135 |
