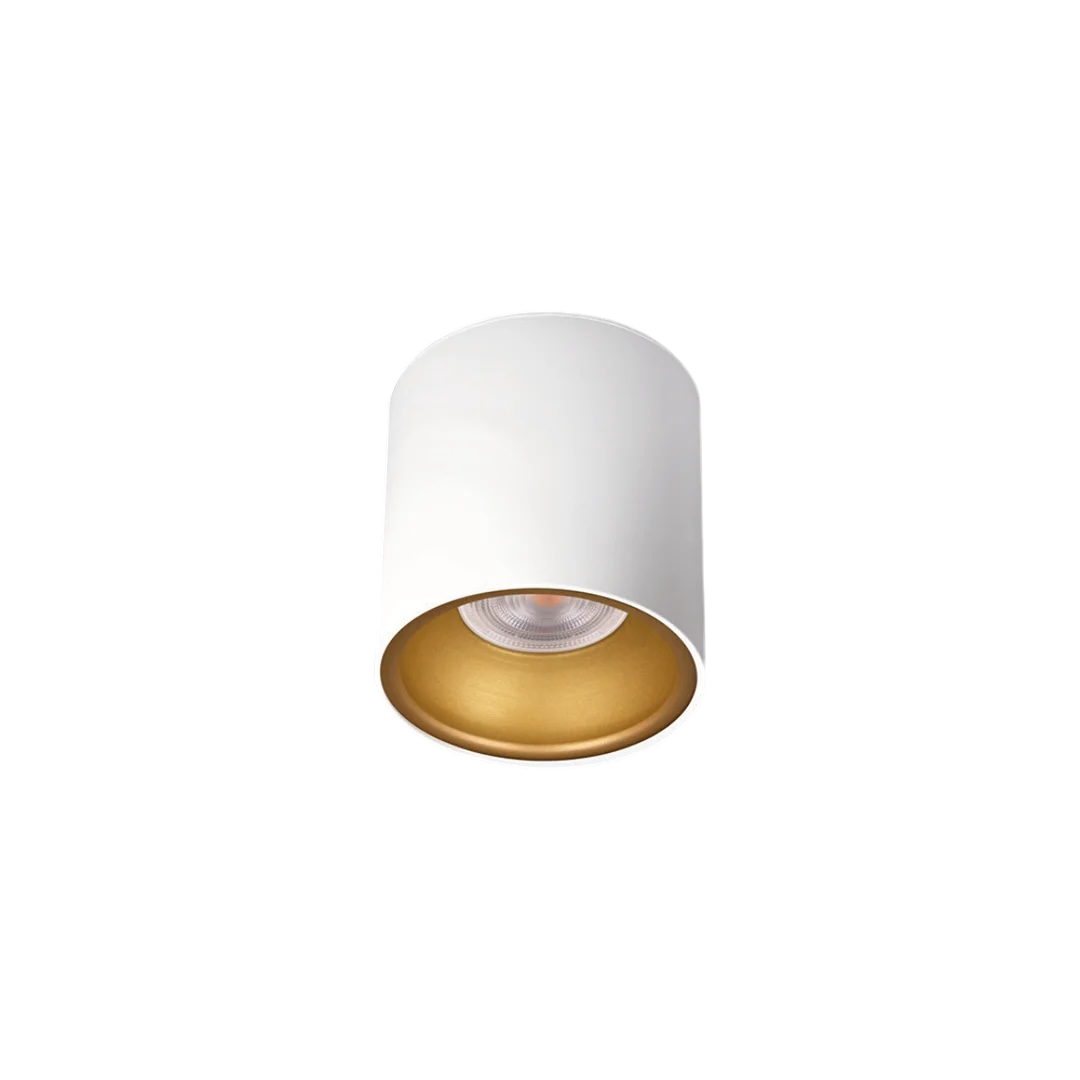

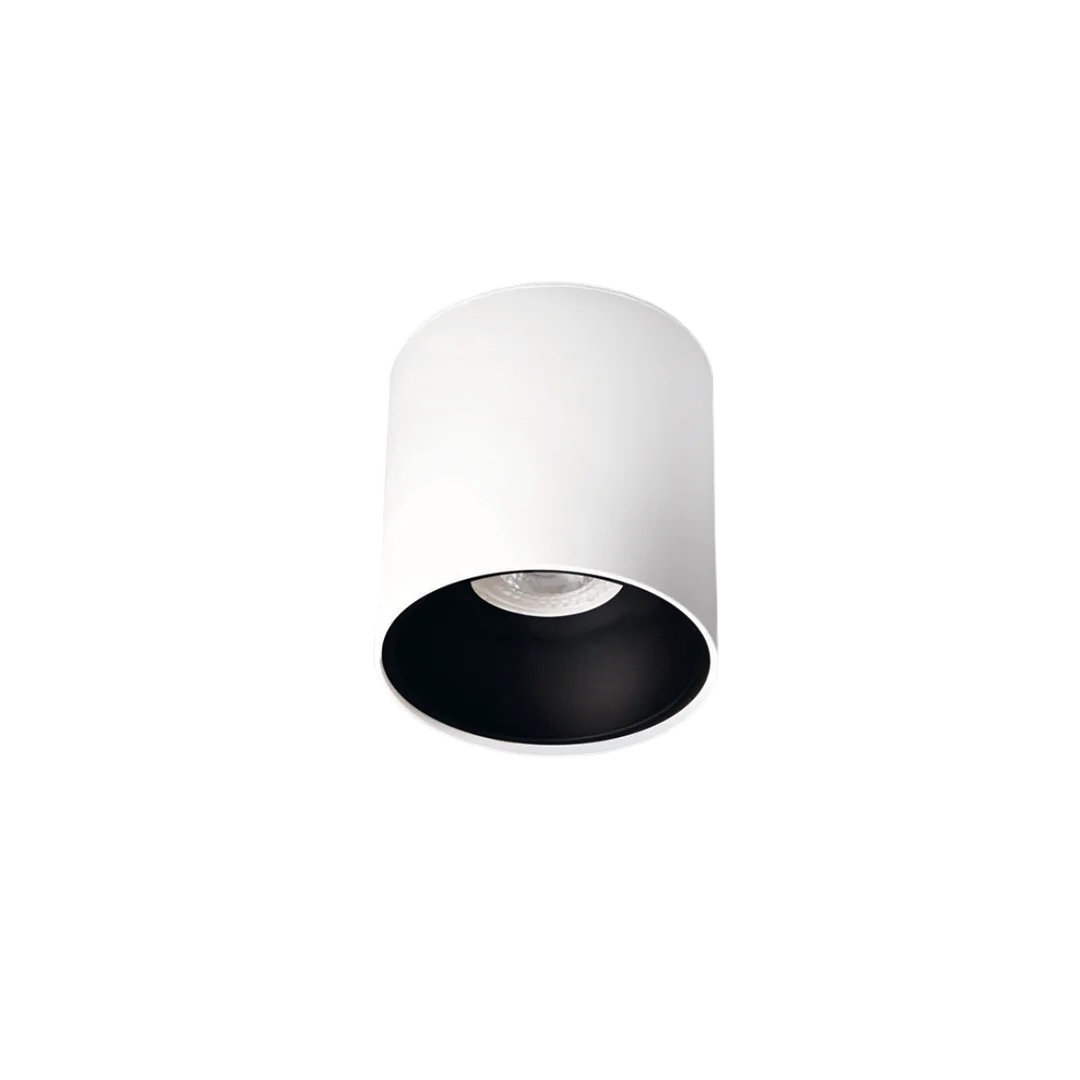

Eros-C
- Açıklama
Description;
- Surface mounted / suspended spotlight with decorative reflector and color options to suit architecture of environments used.

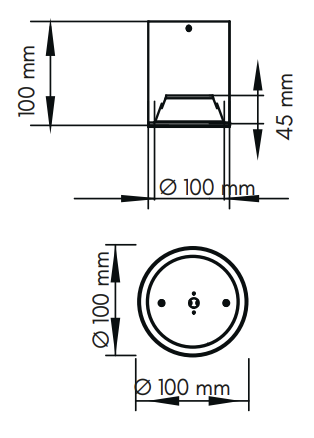

Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector – various color options |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Surface mounted |
| Driver: | Integrated LED driver with Pf>0.9 |
| Light Source | COB LED chip |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| Suspension accessory |

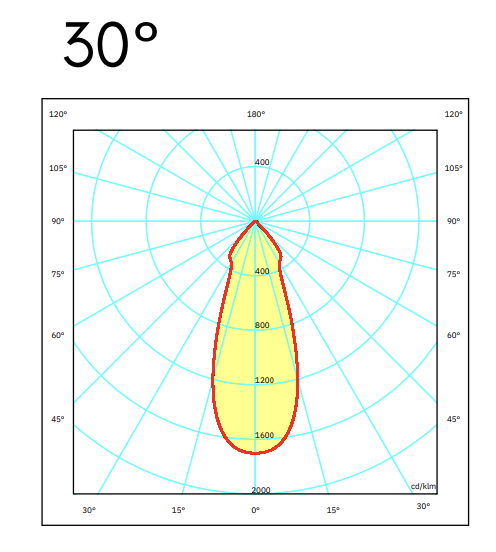

| Optical: |
| Beam angle: 15-30 degree |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (ØxH) (mm) |
| ISS-443-010-827 | 10 | 2700K | 960 | 0,5 kg. | 100×100 |
| ISS-443-010-830 | 10 | 3000K | 1010 | 0,5 kg. | 100×100 |
| ISS-443-010-840 | 10 | 4000K | 1080 | 0,5 kg. | 100×100 |
| ISS-443-010-865 | 10 | 6500K | 1150 | 0,5 kg. | 100×100 |
| ISS-443-000 | GU10 | – | – | – | 100×100 |
