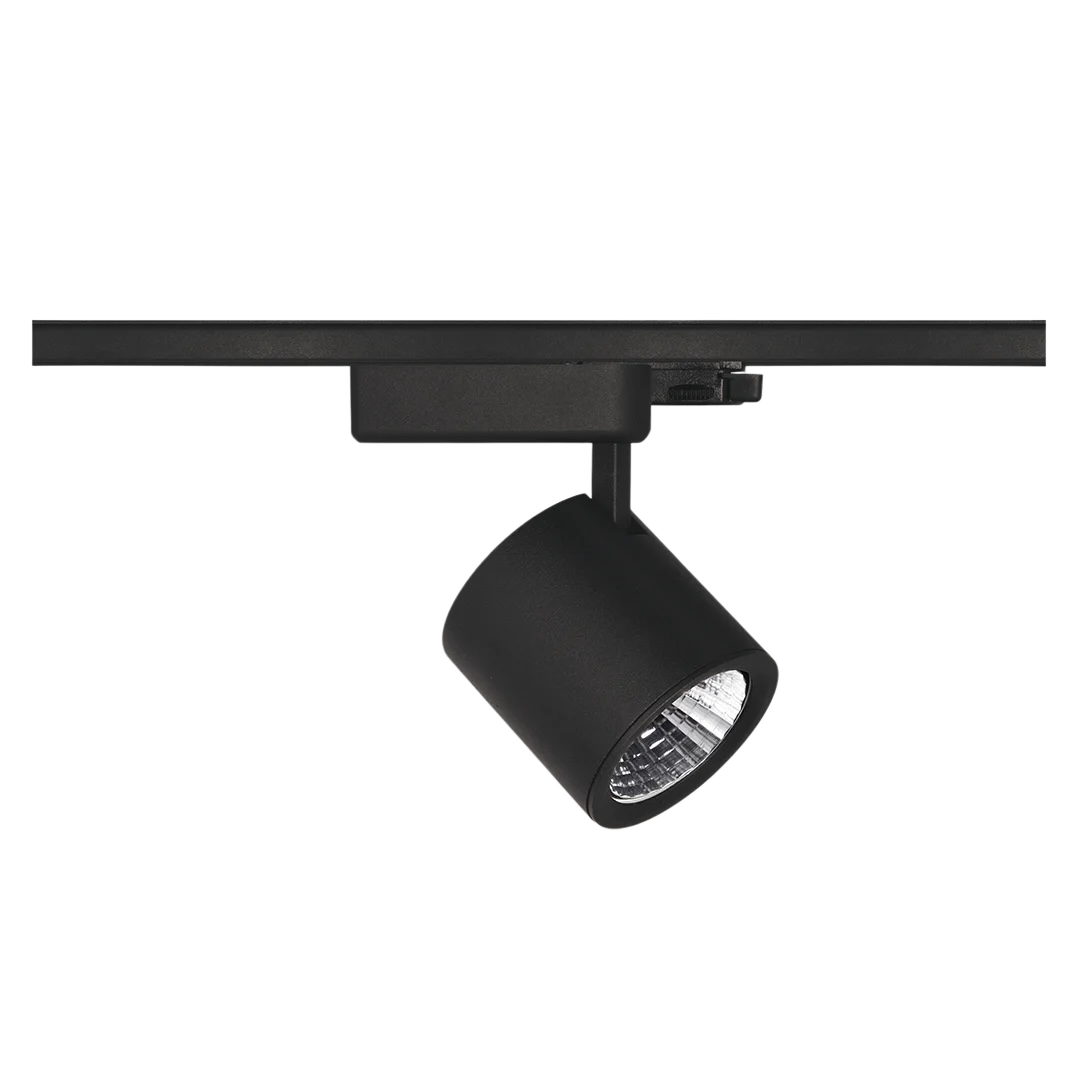

Aura M
- Açıklama

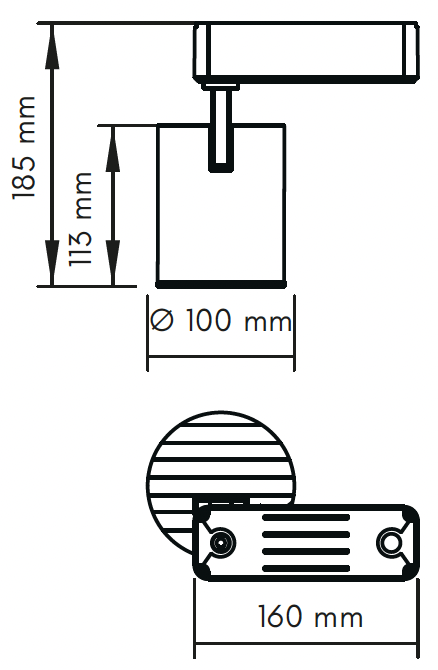

Technical Drawing
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | 3-circuit track mounted |
| Diffuser: | Transparent safety glass |
| Optics: | Aluminium reflector |
| Electrical |
| Driver: | LED driver in horizontal driver box |
| Light Source: | COB LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| Casambi |
| Bluetooth control |
| Watt – lumen – efficiency options |
| Optical: |
| Beam angle: 15-30-45 degree options |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-104-020-827 | 20W | 2700K | 1900 | 1,0 Kg. | 100×185 |
| ITL-104-020-830 | 20W | 3000K | 2040 | 1,0 Kg. | 100×185 |
| ITL-104-020-840 | 20W | 4000K | 2150 | 1,0 Kg. | 100×185 |
| ITL-104-020-865 | 20W | 6500K | 2210 | 1,0 Kg. | 100×185 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-104-030-827 | 30W | 2700K | 2938 | 1,0 Kg. | 100×185 |
| ITL-104-030-830 | 30W | 3000K | 3050 | 1,0 Kg. | 100×185 |
| ITL-104-030-840 | 30W | 4000K | 3240 | 1,0 Kg. | 100×185 |
| ITL-104-030-865 | 30W | 6500K | 3390 | 1,0 Kg. | 100×185 |
