Atlas
- Açıklama
Description;

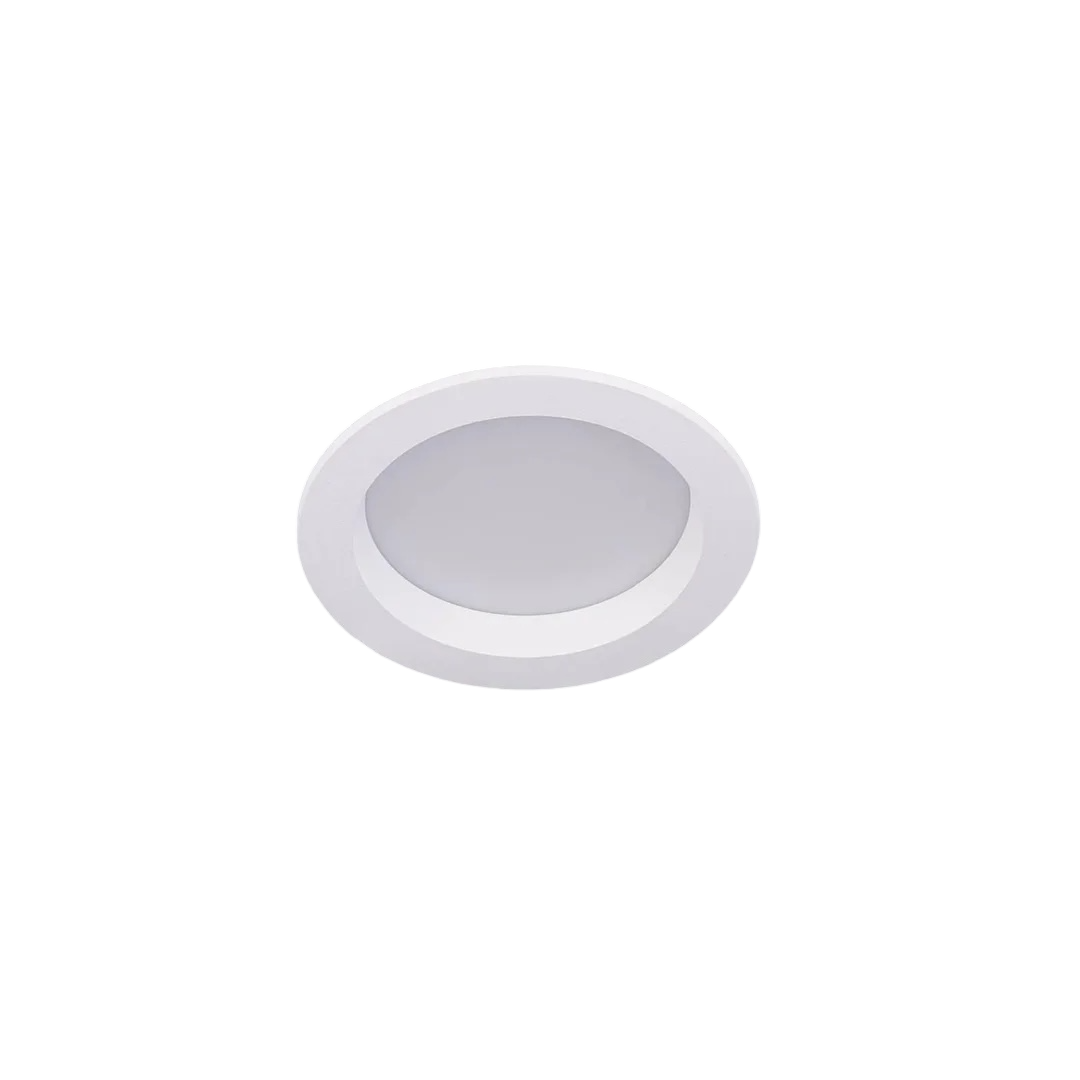

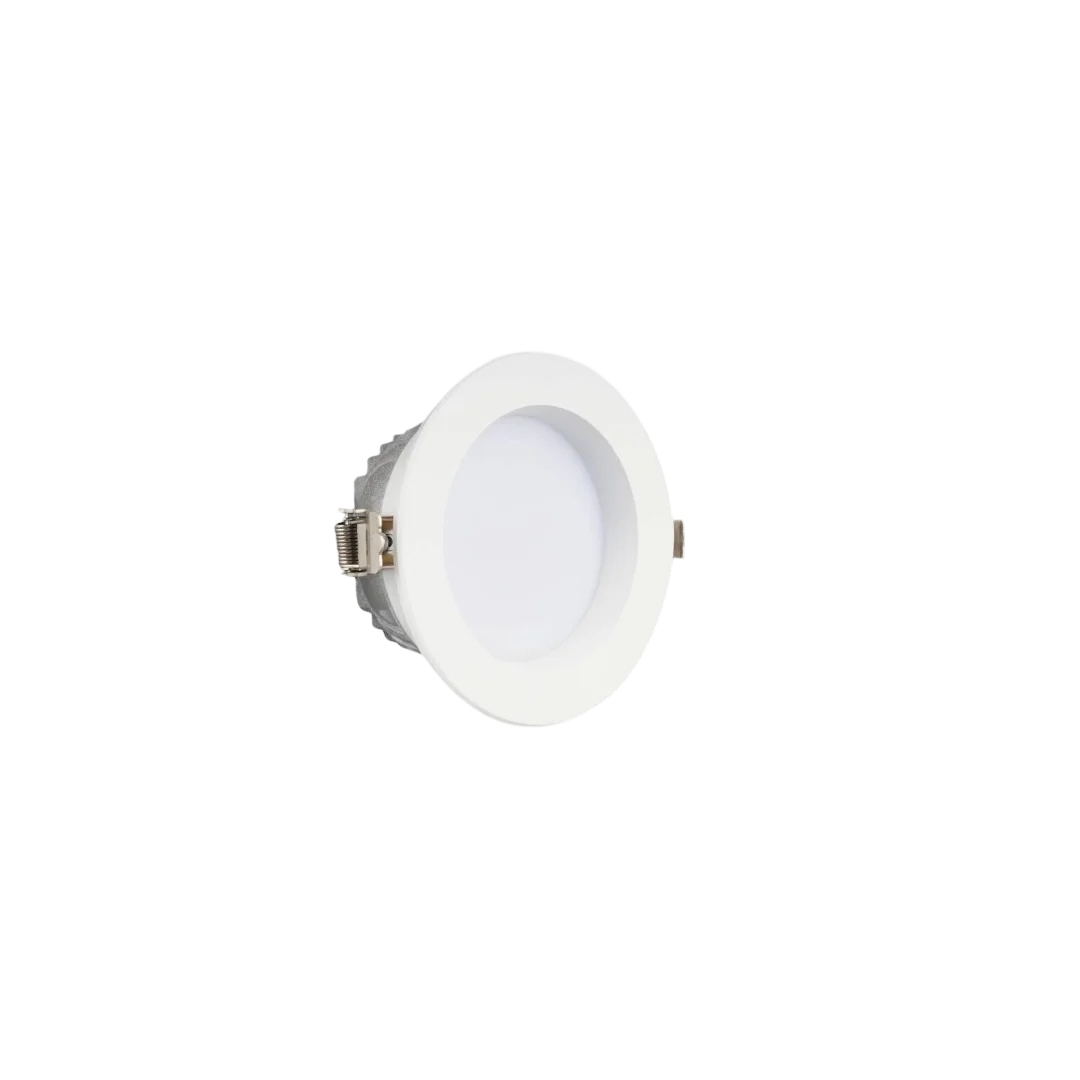

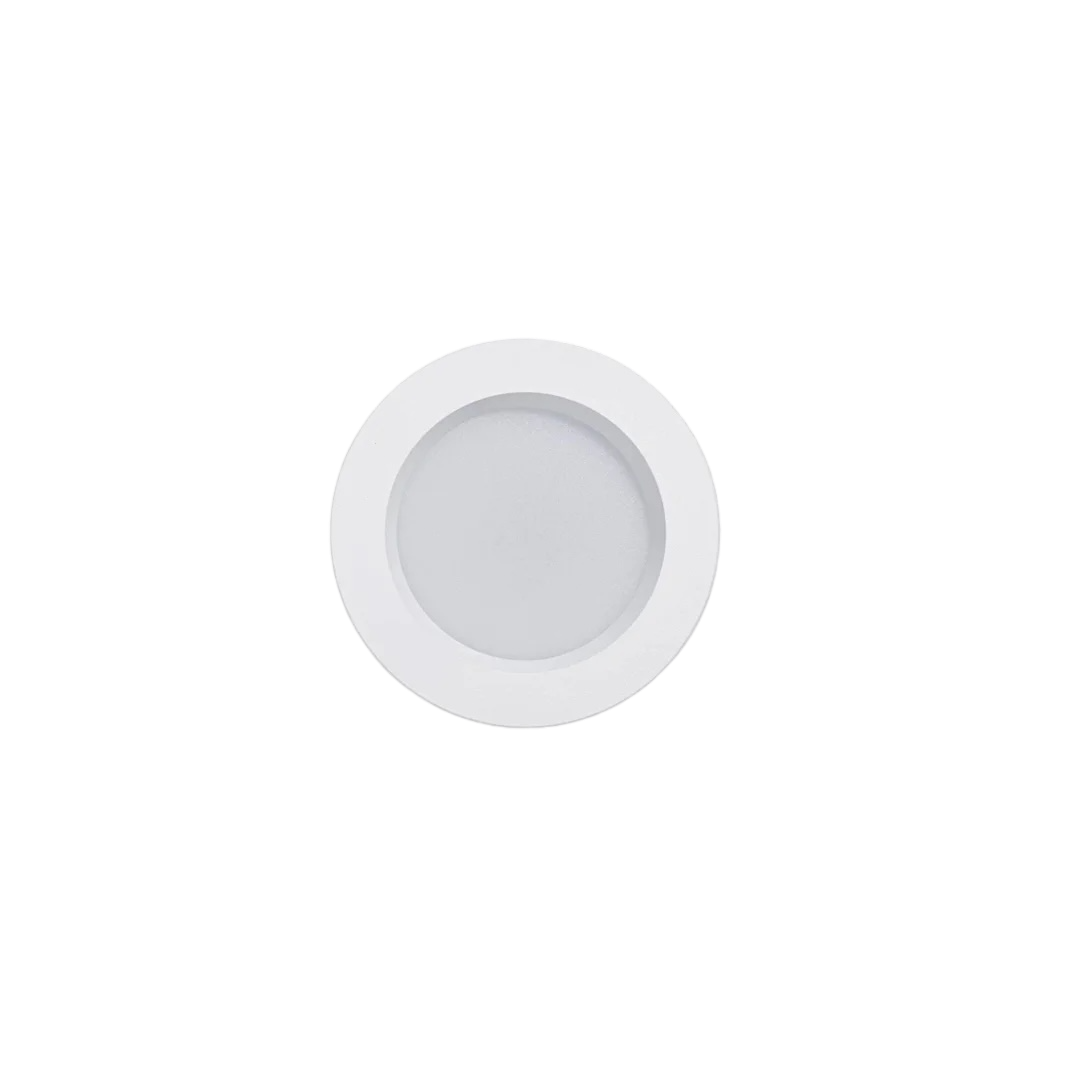

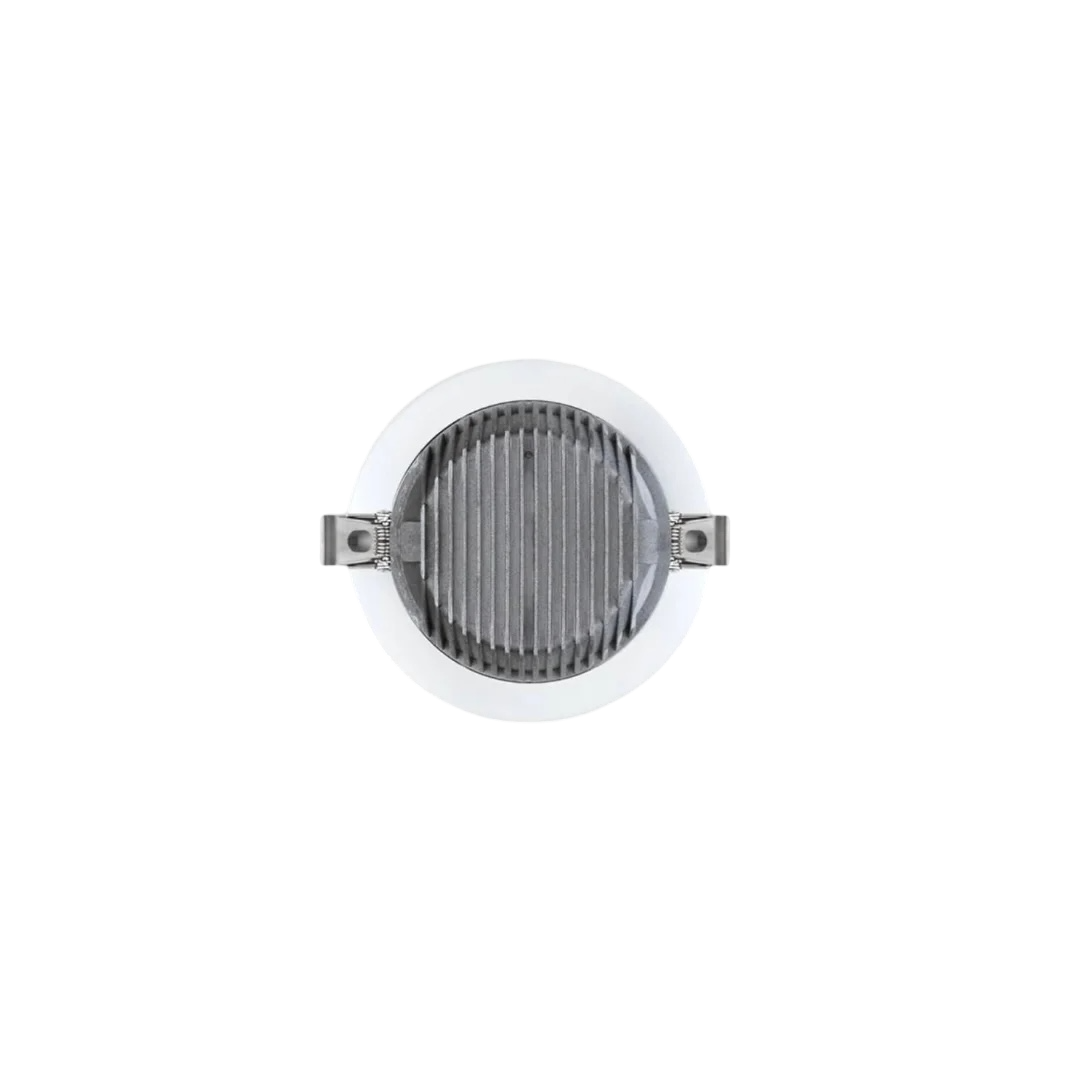

Recessed downlight with aluminium body, frame and heatsink to provide optimal heat transfer. Opal plexiglass diffuser with wide beam provides high efficiency and homogeneous light output. Various sizes in same family helps to build the design and architecture.
Technical Drawing
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | Ceiling recessed |
| Diffuser: | Opal plexiglass diffuser |
| Electrical |
| Driver: | LED driver with external connection |
| Light Source: | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 Pf>0.90 |
| Options: |
| RAL selection |
| CRI>90 |
| Microprismatic diffuser – UGR<19 |
| DALI |
| 0-10V / 1-10V |
| Casambi |
| Emergency kit / CBS connection |
| GST connector |
| Optical: |
| Beam angle: 120 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-501-008-830 | 8W | 810 | 3000K | 108×55 | 85 | 0,6 kg. |
| IDS-501-008-840 | 8W | 840 | 4000K | 108×55 | 85 | 0,6 kg. |
| IDS-501-008-865 | 8W | 900 | 6500K | 108×55 | 85 | 0,6 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-502-012-830 | 12W | 1150 | 3000K | 128×55 | 105 | 0,9 kg. |
| IDS-502-012-840 | 12W | 1200 | 4000K | 128×55 | 105 | 0,9 kg. |
| IDS-502-012-865 | 12W | 1280 | 6500K | 128×55 | 105 | 0,9 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-503-015-830 | 15W | 1500 | 3000K | 150×55 | 130 | 1,2 kg. |
| IDS-503-015-840 | 15W | 1620 | 4000K | 150×55 | 130 | 1,2 kg. |
| IDS-503-015-865 | 15W | 1690 | 6500K |
150×55 | 130 | 1,2 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-504-020-830 | 20W | 2070 | 3000K | 180×55 | 160 | 1,4 kg. |
| IDS-504-020-840 | 20W | 2200 | 4000K | 180×55 | 160 | 1,4 kg. |
| IDS-504-020-865 | 20W | 2280 | 6500K |
180×55 | 160 | 1,4 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-505-025-830 | 25W | 2500 | 3000K | 200×55 | 175 | 1,6 kg. |
| IDS-505-025-840 | 25W | 2550 | 4000K | 200×55 | 175 | 1,6 kg. |
| IDS-505-025-865 | 25W | 2600 | 6500K |
200×55 | 175 | 1,6 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH)(mm) | Cut-out (mm.) | Weight (kg.) |
| IDS-506-030-830 | 30W | 3060 | 3000K | 240×55 | 210 | 2,0 kg. |
| IDS-506-030-840 | 30W | 3150 | 4000K | 240×55 | 210 | 2,0 kg. |
| IDS-506-030-650 | 30W | 3210 | 6500K |
240×55 | 210 | 2,0 kg. |
