Technical Drawing
Mechanical
| Body: | Aluminium |
| Finish: | Electrostatic powder paint |
| Optics: | PC Lenses |
| Diffuser: | Transparent glass |
| Installation: | Ground mounted |
Electrical
| Light Source: | Mid Power LED |
| Frequency: | 220–240V 50/60 Hz |
| Lifetime: | 50.000 hours |
| Power Factor: | PF > 0.90 |
| Operating Temperature: | -20°C / +50°C |
Optical
| Light Effect: | Rotational |

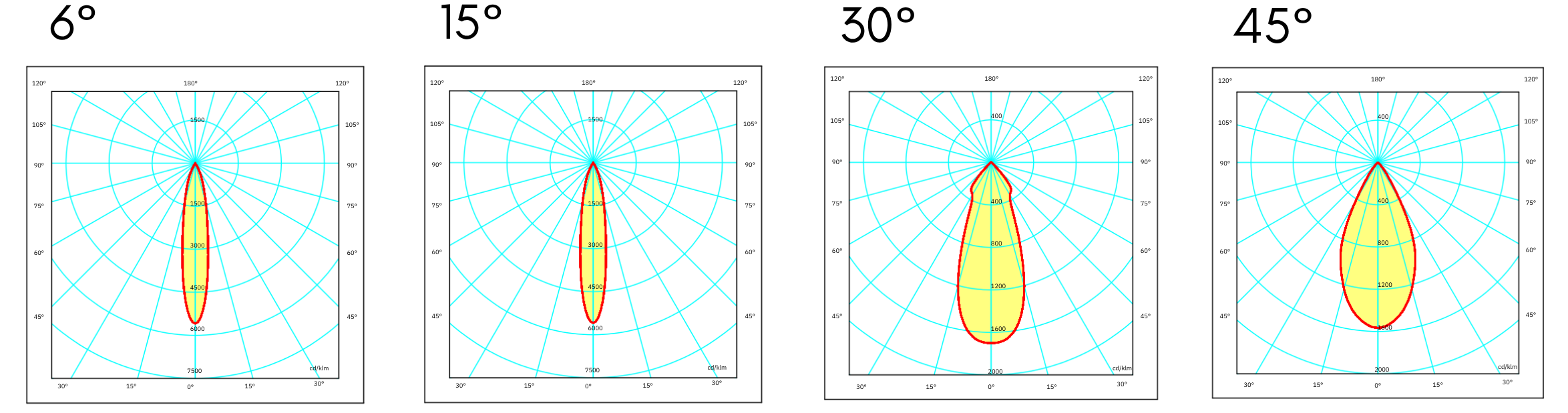

| Beam Angle: | 6-15-30-45 degrees |
| CRI: | >80 |
| McAdams Step: | <3 |
Options
| RAL selection: | Available |
| Control: | DALI-1-10V – Step dim |
| Installation: | Spike |
Technical Chart
| Art. No. | Power (W) | Lumen | Colour Temp (K) | Dimensions (Q×H) mm | Cut-out (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| EFS-025-010-830 | 10W | 1100* | 3000K | 85×112 | N/A | 0,70 kg |
| EFS-025-006-830 | 6W | 720* | 3000K | 85×112 | N/A | 0,70 kg |
