Panera SS

Panera SS

SKU: ITS-956 Categories: ,



Data SheetDownload
Photometric FileDownload
Installation ManualDownload
CertificatesDownload
  • Açıklama

Description;

Technical lighting products to complete all areas of lighting projects.

Ekran Resmi 2024 03 12 14.24.10

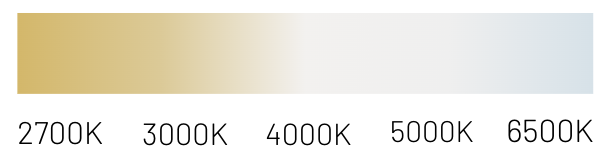

Ekran Resmi 2023 11 02 16.11.41

Features

Mechanical
Body:Aluminum Body
Finish:Electrostatic powder painted
Installation:Surface Mounted
Optics:Opal plexiglass diffuser
Electrical
Light SourceSMD LED
Frequency:220-240V 50/60 Hz
Lifetime:50.000 hours Pf>0.90
Operating Temperature:-20 / +50
Options:
RAL selection
CRI>90
Tunable white
Micro-prismatic diffuser (UGR<19)
DALI
0-10V / 1-10V
Emergency kit / CBS connection
Watt-lumen options
Suspension accessory
Optical:
Light Output: Direct
Beam angle: 120 degrees
UGR:< 21
CRI>80
McAdams Step<3
Technical Chart
Art. Nr.Power (W)Lumen outputColour temp.Dimensions (WxLxH)(mm)Weight(kg.)
ITS-956-018-82718W18002700K300x300x451,0 kg.
ITS-956-018-83018W18503000K300x300x451,0 kg.
ITS-956-018-84018W19004000K300x300x451,0 kg.
ITS-956-018-86518W19506500K300x300x451,0 kg.
Technical Chart
Art. Nr.Power (W)Lumen outputColour temp.Dimensions (WxLxH)(mm)Weight(kg.)
ITS-957-045-82745W45002700K300x1200x451,8 kg.
ITS-957-045-83045W45503000K300x1200x451,8 kg.
ITS-957-045-84045W46004000K300x1200x451,8 kg.
ITS-957-045-86545W46506500K300x1200x451,8 kg.
Technical Chart
Art. Nr.Power (W)Lumen outputColour temp.Dimensions (WxLxH)(mm)Weight(kg.)
ITS-958-040-82740W40002700K600x600x451,8 kg.
ITS-958-040-83040W41003000K600x600x451,8 kg.
ITS-958-040-84040W42104000K600x600x451,8 kg.
ITS-958-040-86540W44606500K600x600x451,8 kg.
Technical Chart
Art. Nr.Power (W)Lumen outputColour temp.Dimensions (WxLxH)(mm)Weight(kg.)
ITS-959-080-82780W80002700K600x1200x451,8 kg.
ITS-959-080-83080W80703000K600x1200x451,8 kg.
ITS-959-080-84080W81404000K600x1200x451,8 kg.
ITS-959-080-86580W82106500K600x1200x451,8 kg.
