Paris M II
- Açıklama
Description;

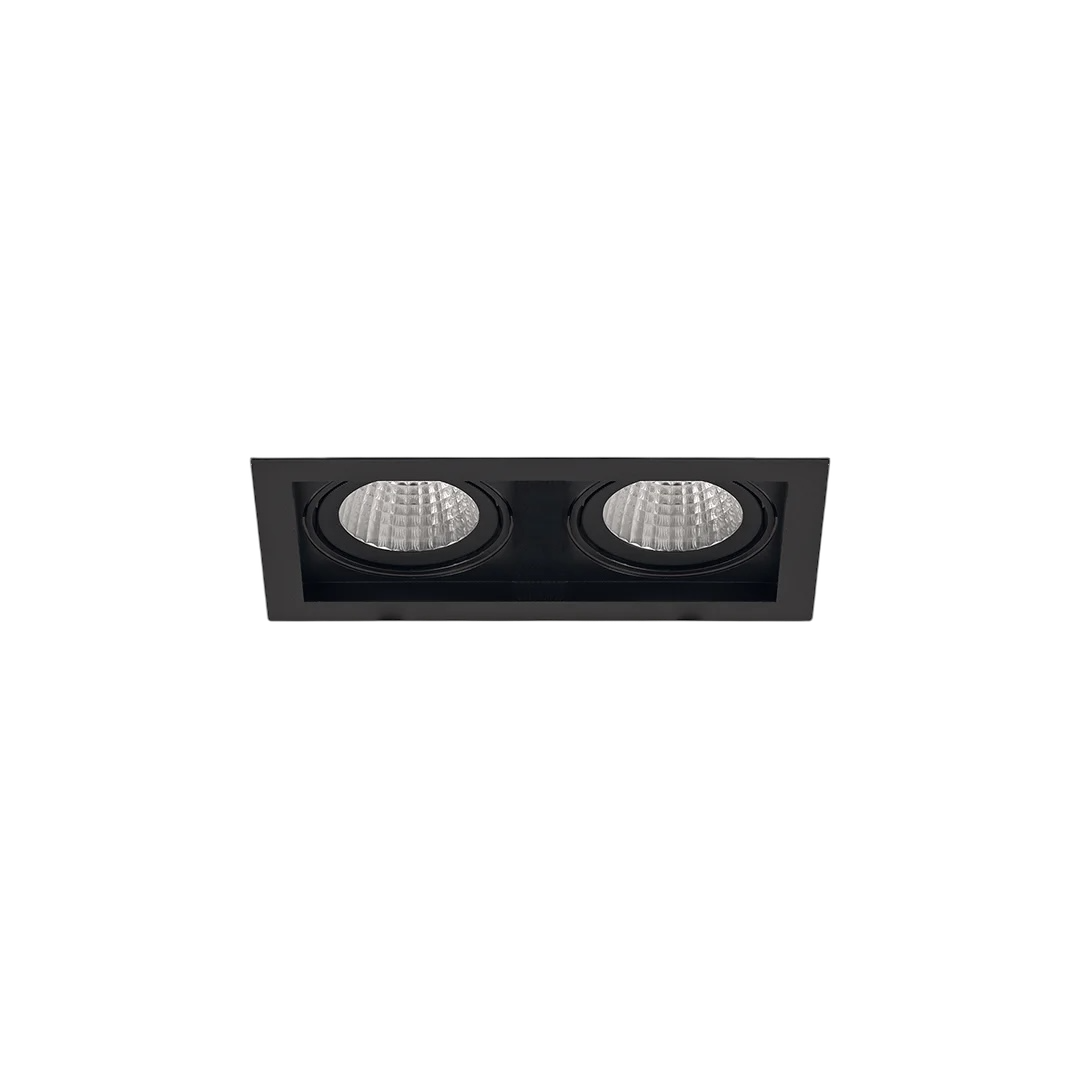

Recessed spot light with two adjustable heads for object lighting. Adjustable heads allow a 30° vertical and 30° horizontal rotation. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.
Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector |
| Diffuser: | Transparent safety glass |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Ceiling recessed mounted |
| Driver: | LED driver with external connection |
| Light Source | COB LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| 0-10V / 1-10V |
| Casambi |
| GST connector |
| Emergency kit / CBS connection |
| Optical: |
| Beam angle: 15-30-45 degree |
| Adjustable up to 30 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm) | Dimensions (WxLxH) (mm) |
| ISS-408-030-827 | 2x15W | 2700K | 3000 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-030-830 | 2x15W | 3000K | 3160 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-030-840 | 2x15W | 4000K | 3320 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-030-865 | 2x15W | 6500K | 3460 | 2,0 kg | 120×240 | 140x260x87 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm) | Dimensions (WxLxH) (mm) |
| ISS-408-040-827 | 2x20W | 2700K | 4040 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-040-830 | 2x20W | 3000K | 4200 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-040-840 | 2x20W | 4000K | 4480 | 2,0 kg | 120×240 | 140x260x87 |
| ISS-408-040-865 | 2x20W | 6500K | 4700 | 2,0 kg | 120×240 | 140x260x87 |
