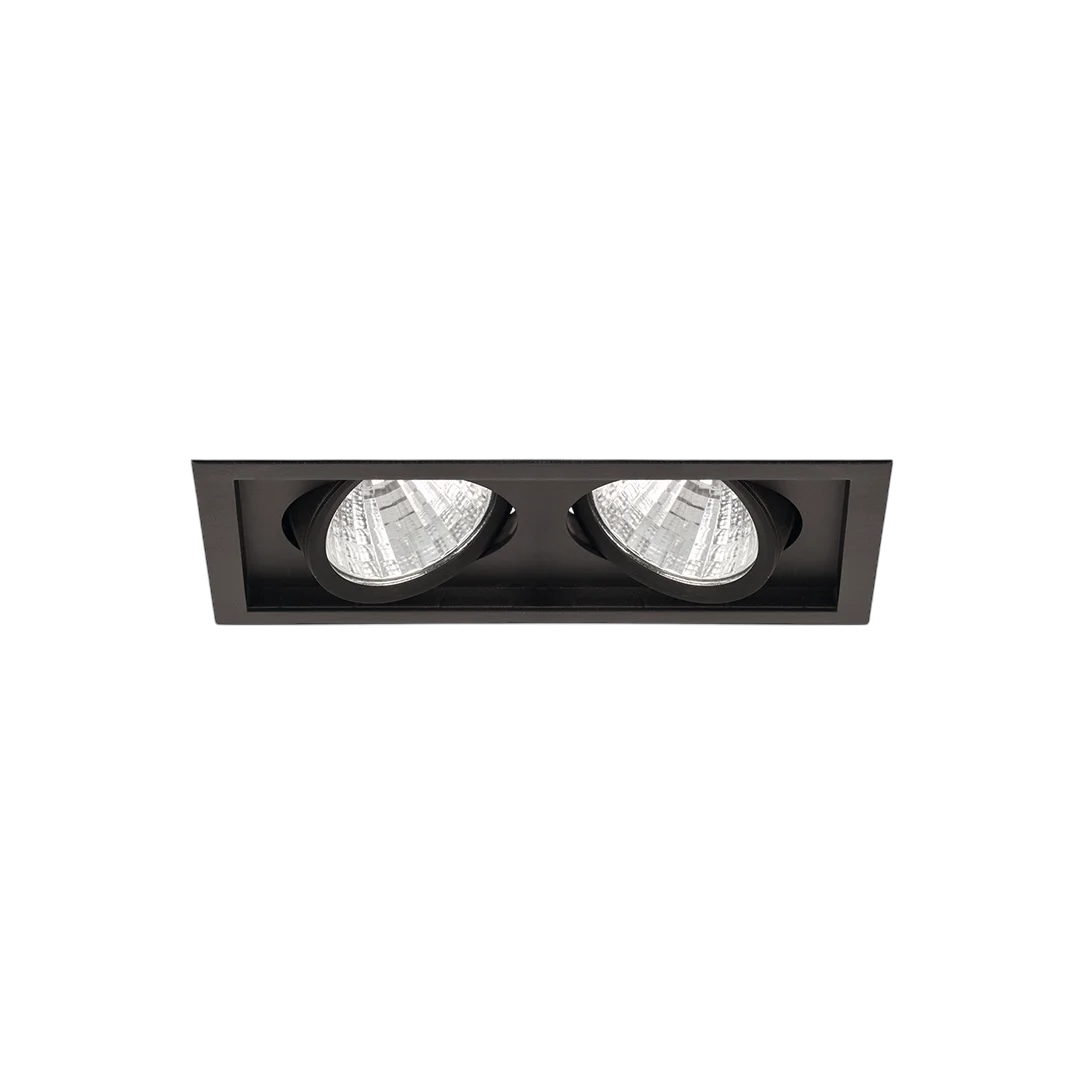

Paris L II
- Açıklama
Description;
Recessed spot light with two adjustable heads for object lighting. Adjustable heads allow a 30° vertical and 30° horizontal rotation. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.

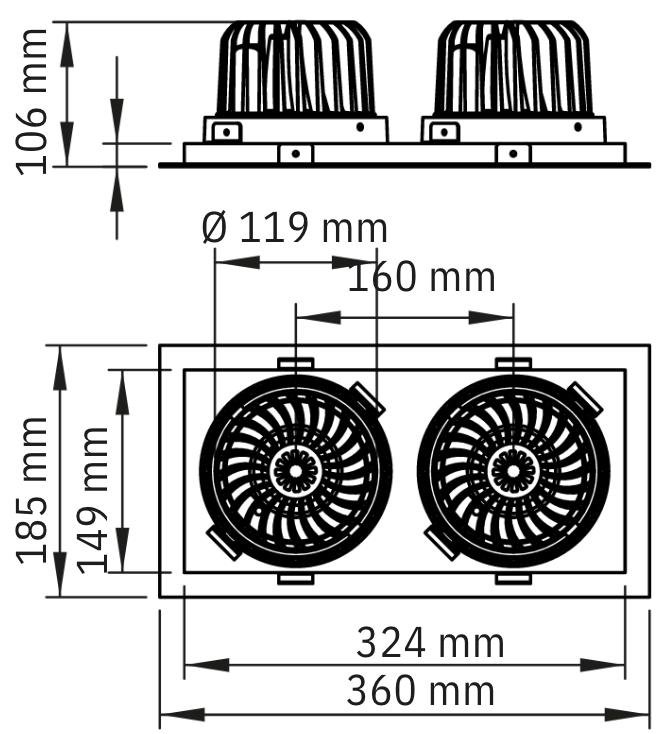

Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector |
| Diffuser: | Transparent safety glass |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Ceiling recessed mounted |
| Driver: | LED driver with external connection |
| Light Source | COB LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| 0-10V / 1-10V |
| Casambi |
| GST connector |
| Emergency kit / CBS connection |

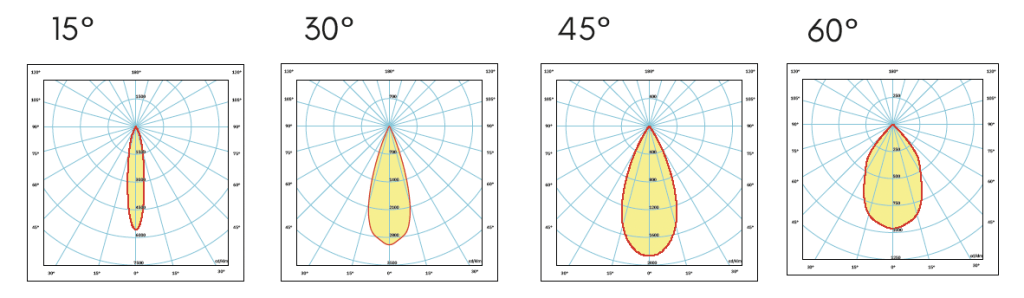

| Optical: |
| Beam angle: 15-30-45-60 degree |
| Adjustable up to 30 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm) | Dimensions (WxLxH) (mm) |
| ISS-405-060-827 | 2x30W | 2700K | 6000 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-060-830 | 2x30W | 3000K | 6300 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-060-840 | 2x30W | 4000K | 6400 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-060-865 | 2x30W | 6500K | 6640 | 2,7 kg | 170×330 | 185x360x107 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm) | Dimensions (WxLxH) (mm) |
| ISS-405-076-827 | 2x38W | 2700K | 7660 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-076-830 | 2x38W | 3000K | 7800 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-076-840 | 2x38W | 4000K | 8000 | 2,7 kg | 170×330 | 185x360x107 |
| ISS-405-076-865 | 2x38W | 6500K | 8180 | 2,7 kg | 170×330 | 185x360x107 |
