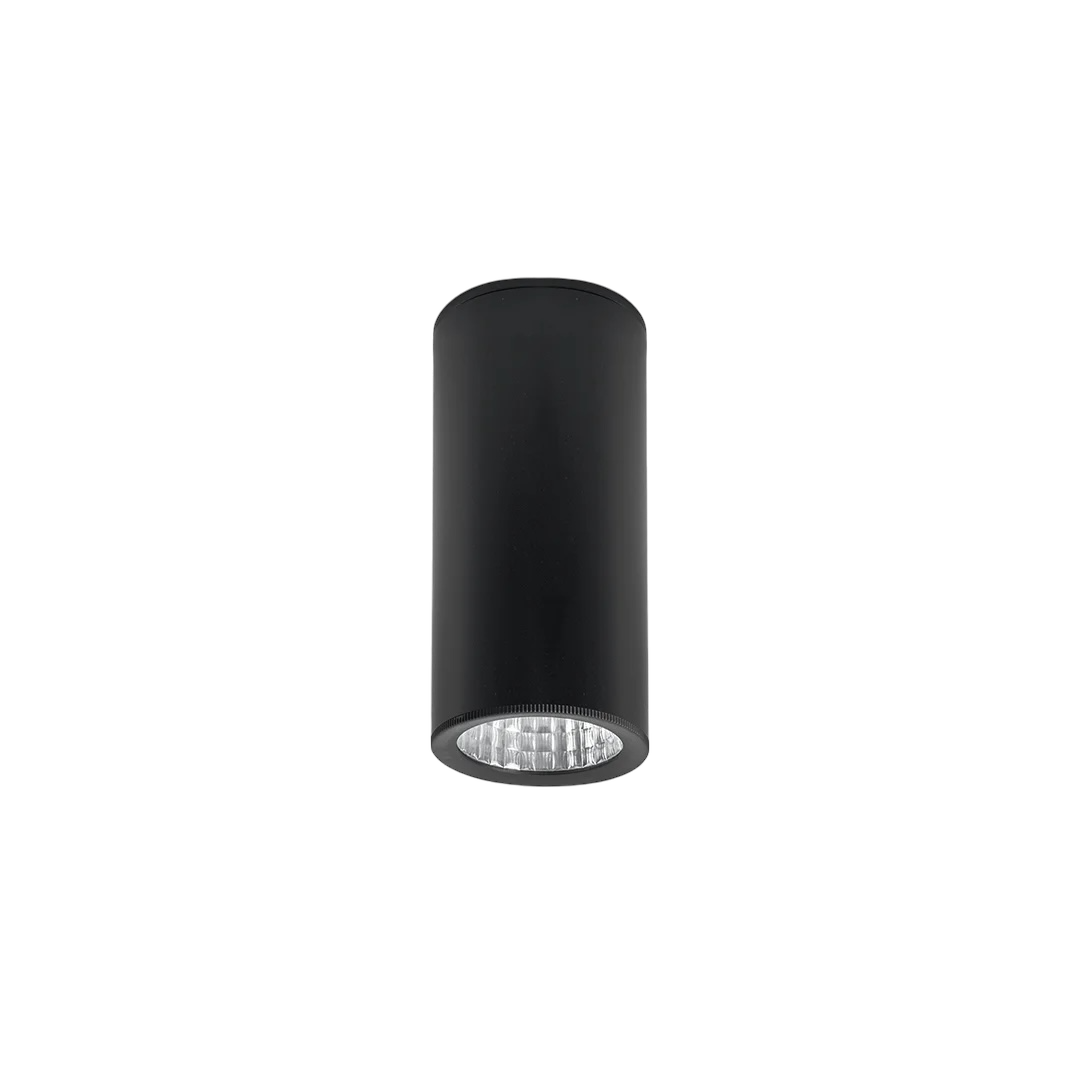

Echo M
- Açıklama
Description;
- Surface mounted / suspended spot light with different dimension, power and lumen options, ideal solution for each environment used. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.

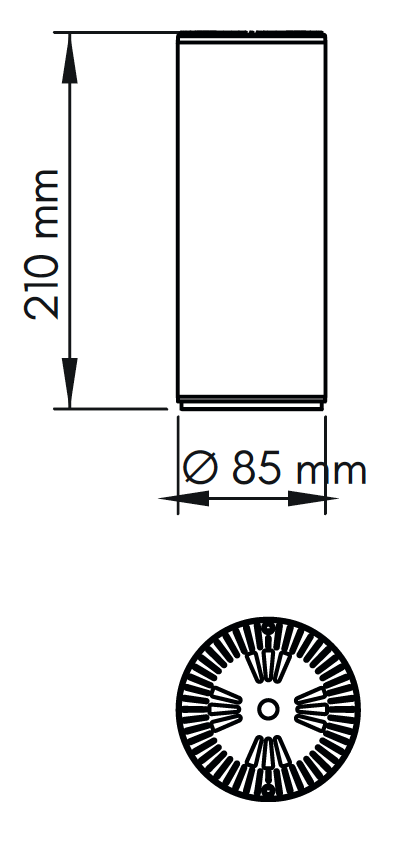

Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector – facet shaped. |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Surface mounted |
| Driver: | Integrated LED driver with Pf>0.9 |
| Light Source | COB LED |
| Diffuser: | Transparent safety glass |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| CCT options |
| Suspension accessory |
| Optical: |
| Beam angle: 15-30-45 degree |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (ØxH) (mm) |
| ISS-434-015-827 | 15W | 2700K | 1500 | 0,7 kg | 85×210 |
| ISS-434-015-830 | 15W | 3000K | 1570 | 0,7 kg | 85×210 |
| ISS-434-015-840 | 15W | 4000K | 1620 | 0,7 kg | 85×210 |
| ISS-434-015-865 | 15W | 6500K | 1660 | 0,7 kg | 85×210 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (ØxH) (mm) |
| ISS-434-020-827 | 20W | 2700K | 1985 | 0,7 kg | 85×210 |
| ISS-434-020-830 | 20W | 3000K | 2030 | 0,7 kg | 85×210 |
| ISS-434-020-840 | 20W | 4000K | 2100 | 0,7 kg | 85×210 |
| ISS-434-020-865 | 20W | 6500K | 2170 | 0,7 kg | 85×210 |
