- Açıklama
Description;
Waterproof luminaire with extruded policarbon body and opal polycarbonate diffuser. The advanced slim design without springs increases IP & IK protection and yet provides better performance than regular waterproofs. Policarbon body increases cooling performance and durability to environment challenges.

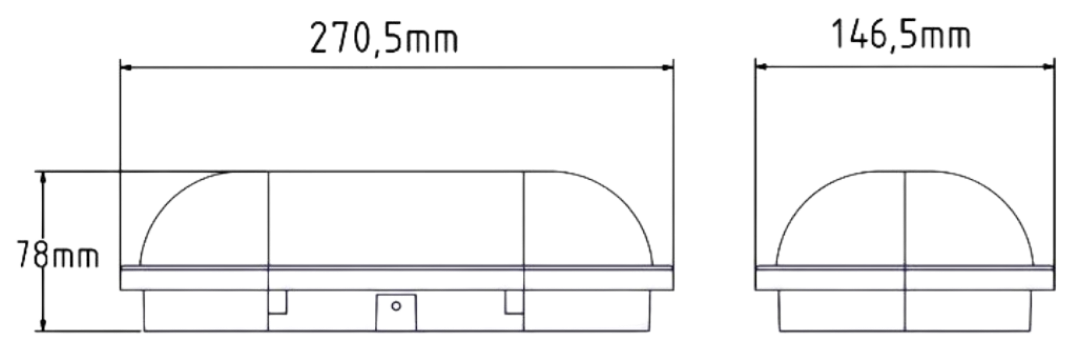

Technical Drawing
Features
| Mechanical |
| Body: | Extruded aluminium profile |
| End cap: | Polycarbonate |
| Installation: | Ceiling surface mounted |
| Optics: | Opal polycarbonate diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| CRI>90 |
| 100.000 hours lifetime |
| DALI |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Sensor applications |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degree options |
| UGR:< 22 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxLxH)mm. | Weight(kg.) |
| IIS-814-010-830 | 10W | 960 | 3000K | 220x110x55 | 0,5 kg. |
| IIS-814-010-840 | 10W | 980 | 4000K | 220x110x55 | 0,5 kg. |
| IIS-814-010-865 | 10W | 1000 | 6500K | 220x110x55 | 0,5 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxLxH)mm. | Weight(kg.) |
| IIS-814-020-830 | 20W | 2010 | 3000K | 220x110x55 | 0,5 kg. |
| IIS-814-020-840 | 20W | 2070 | 4000K | 220x110x55 | 0,5 kg. |
| IIS-814-020-865 | 20W | 2130 | 6500K | 220x110x55 | 0,5 kg. |
