Aura S
- Açıklama

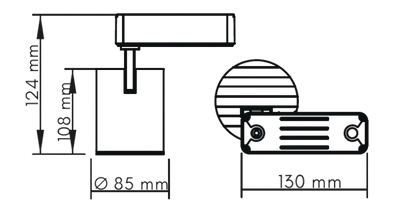

Technical Drawing
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | 3-circuit track mounted |
| Diffuser: | Transparent safety glass |
| Optics: | Aluminium reflector |
| Electrical |
| Driver: | LED driver in horizontal driver box |
| Light Source: | COB LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| Casambi |
| Bluetooth control |
| Watt – lumen – efficiency options |
| Optical: |
| Beam angle: 15-30-45 degree options |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-103-015-827 | 15W | 2700K | 1520 | 0,8 kg. | 85×124 |
| ITL-103-015-830 | 15W | 3000K | 1600 | 0,8 kg. | 85×124 |
| ITL-103-015-840 | 15W | 4000K | 1680 | 0,8 kg. | 85×124 |
| ITL-103-015-865 | 15W | 6500K | 1760 | 0,8 kg. | 85×124 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-103-020-827 | 20W | 2700K | 2000 | 0,8 kg. | 85×124 |
| ITL-103-020-830 | 20W | 3000K | 2140 | 0,8 kg. | 85×124 |
| ITL-103-020-840 | 20W | 4000K | 2200 | 0,8 kg. | 85×124 |
| ITL-103-020-865 | 20W | 6500K | 2315 | 0,8 kg. | 85×124 |
