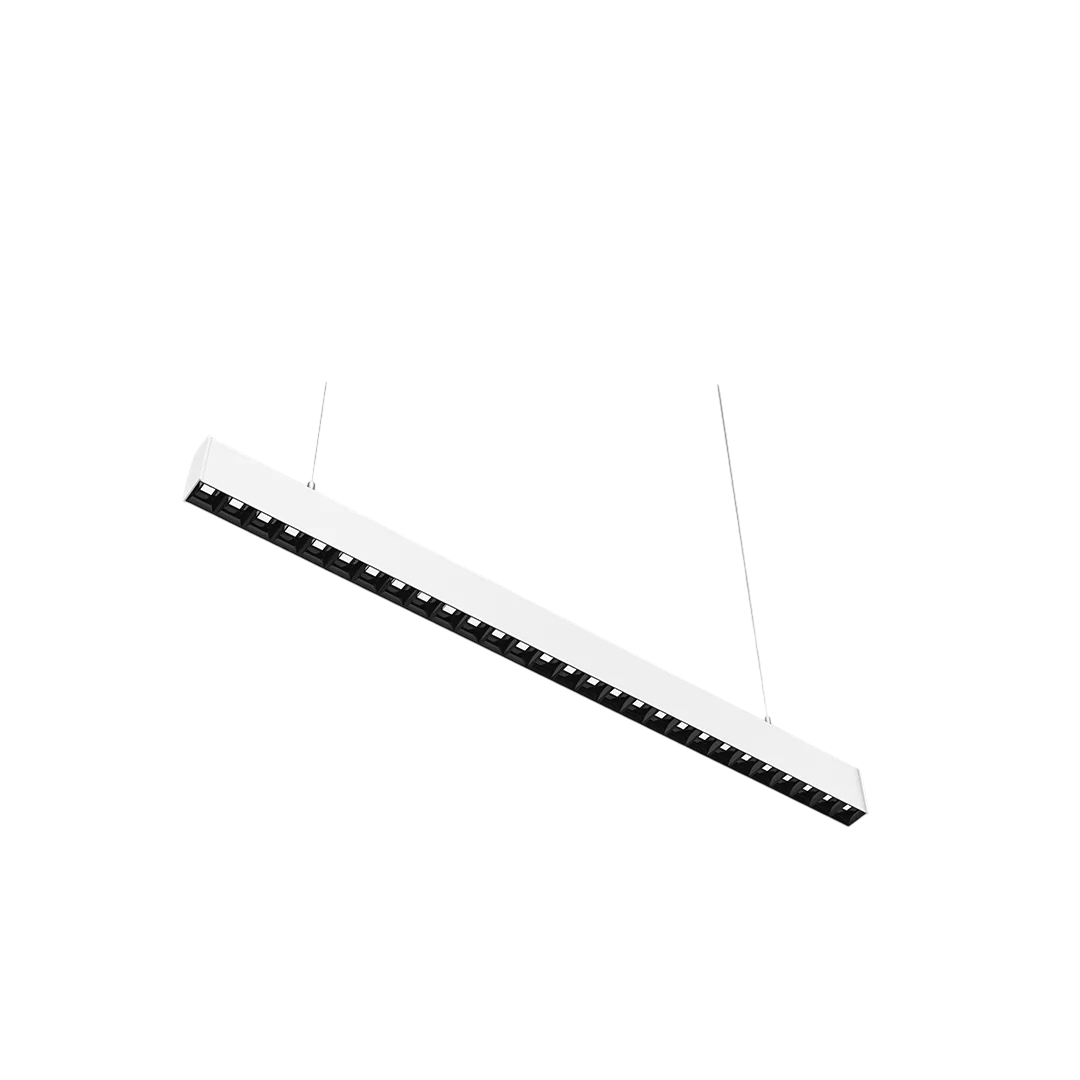

Linear lighting solution with LEDIL Daisy dark optics for maximum efficiency and eye comfort – UGR<16. Direct or direct & indirect light options combined with various beam angles to act as a one stop solution for all projects. Continuous structure with easy connection enables usage for endless meters in a parallel format.
Features
Mechanical
Body:
Extruded aluminium profile
End Caps:
Screwless design plastic
Finish:
Electrostatic powder painted
Installation:
Ceiling surface mounted
Optics:
LEDIL Linda diffuser for direct, opal PC diffuser for indirect part
Options:
RAL selection
CRI>90
Tunable white
DALI
0-10V / 1-10V
Emergency kit / CBS connection
Electrical
Driver:
LED driver inside the body.
Light Source
SMD LED
Frequency:
220-240V 50/60 Hz
Lifetime:
50.000 hours
Operating Temperature:
-20 / +50
Optical:
Daisy dark louvre optics
Light Output: Direct or direct & indirect options
Beam angle: 60 – 90 degree options
UGR:< 16
CRI>80
McAdams Step<3
Technical Chart
Art. Nr.
Power (W)
Lumen output
Colour temp.
Dimensions (WxLxH) (mm)
Light Direction
Weight(kg.)
ILS-603-100-830
22W
2900
3000K
43x1160x87
Direct
1,5kg.
ILS-603-100-840
22W
3050
4000K
43x1160x87
Direct
1,5kg.
ILS-603-100-865
22W
3200
6500K
43x1160x87
Direct
1,5kg.
ILS-603-200-830
38W
4200
3000K
43x1160x87
Direct & Indirect
1,5kg.
ILS-603-200-840
38W
4500
4000K
43x1160x87
Direct & Indirect
1,5kg.
ILS-603-200-865
38W
4750
6500K
43x1160x87
Direct & Indirect
1,5kg.
Custom lengths available for projects. Minimum length for single luminaire is 560 mm. Maximum length for single
luminaire is 2600 mm. Parts can be combined by our sales team to reach required lengths.
Accessories
Art. Nr.
Description
ILS-600-150-S
1,5 mt. steel wire adjustable suspesion set
ILS-600-010-800
Blind cover – 100 mm. (different lengths possible upon request)
