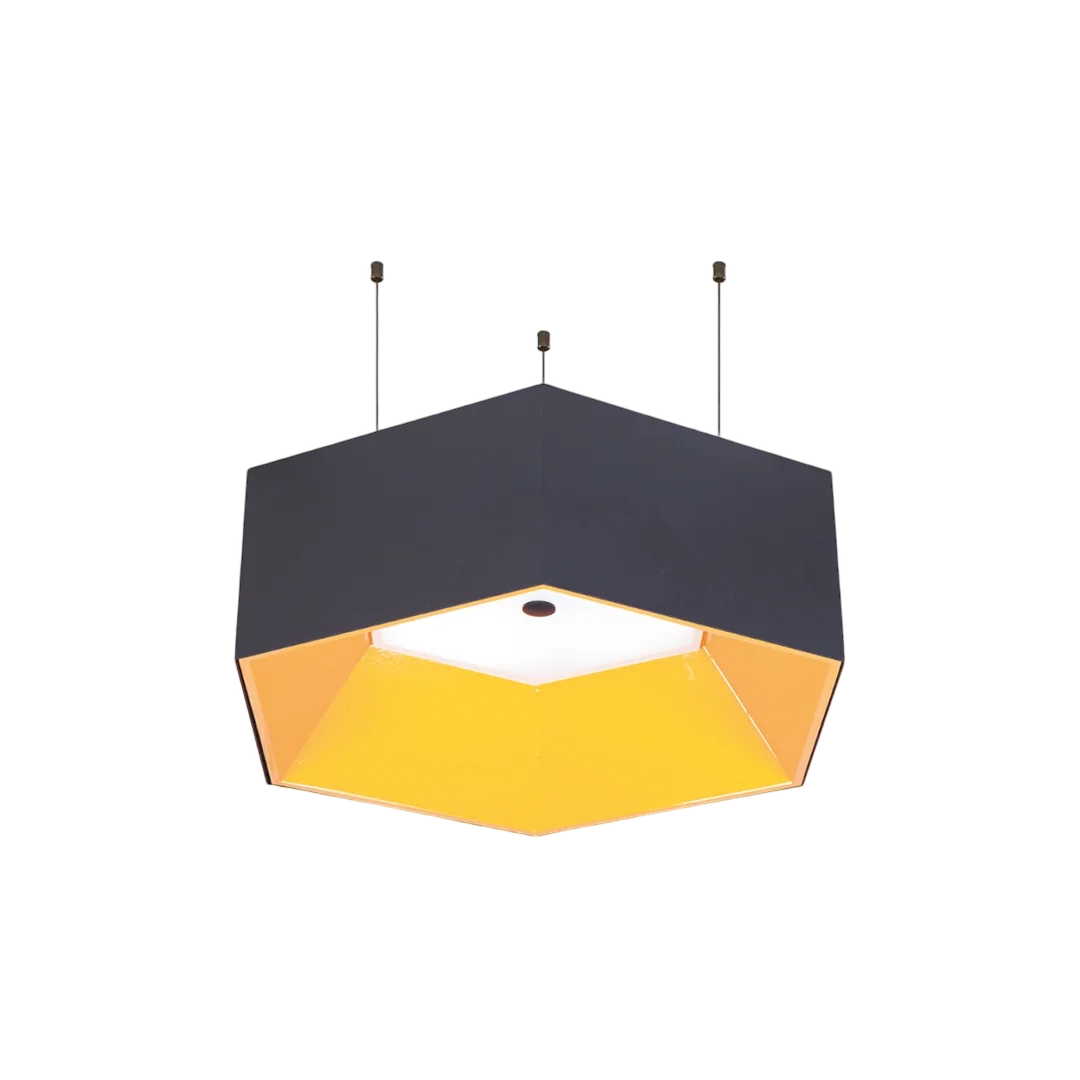

Teka H
- Açıklama
Description;
Combination of decorative and technical lighting with unique design and various customization options from dimensions to colours.
Features
| Mechanical |
| Body: | Aluminum Body |
| Finish: | Electrostatic powder painted |
| Installation: | Ceiling mounted |
| Optics: | Opal plexiglass diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| Tunable white |
| Micro-prismatic diffuser (UGR<19) |
| DALI |
| 0-10V / 1-10V |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Suspension accessory |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |

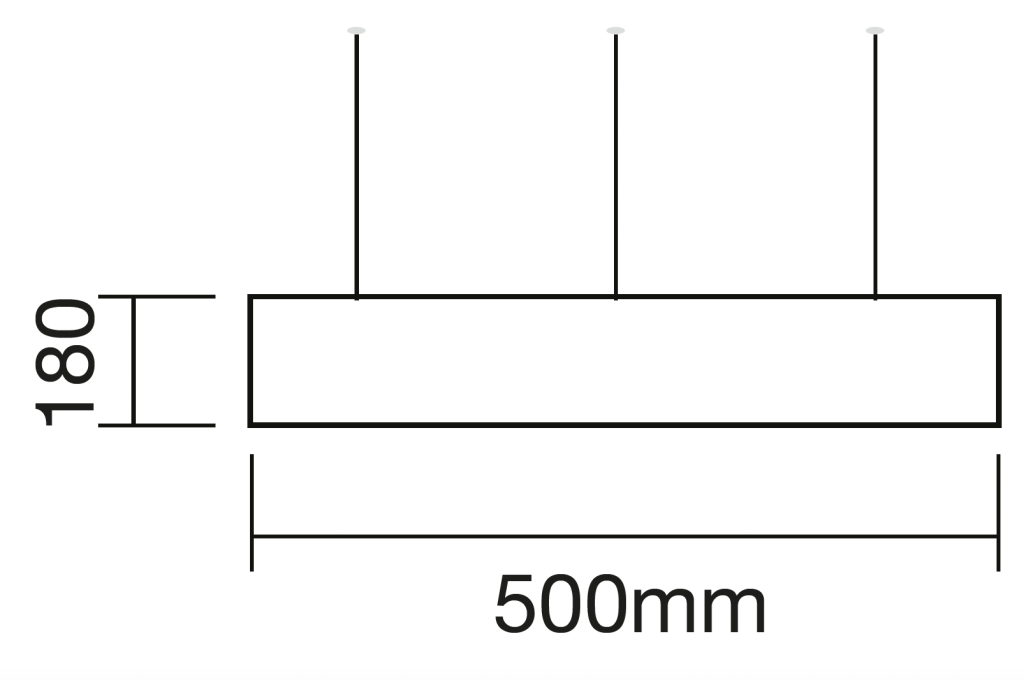

| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (WxH)(mm) | Weight(kg.) |
| IDS-717-035-827 | 35W | 4000 | 2700K | 500×180 | 3,5 kg. |
| IDS-717–035-830 | 35W | 4200 | 3000K | 500×180 | 3,5 kg. |
| IDS-717–035-840 | 35W | 4390 | 4000K | 500×180 | 3,5 kg. |
| IDS-717–035-865 | 35W | 4450 | 6500K | 500×180 | 3,5 kg. |
