Plato
- Açıklama
Description;

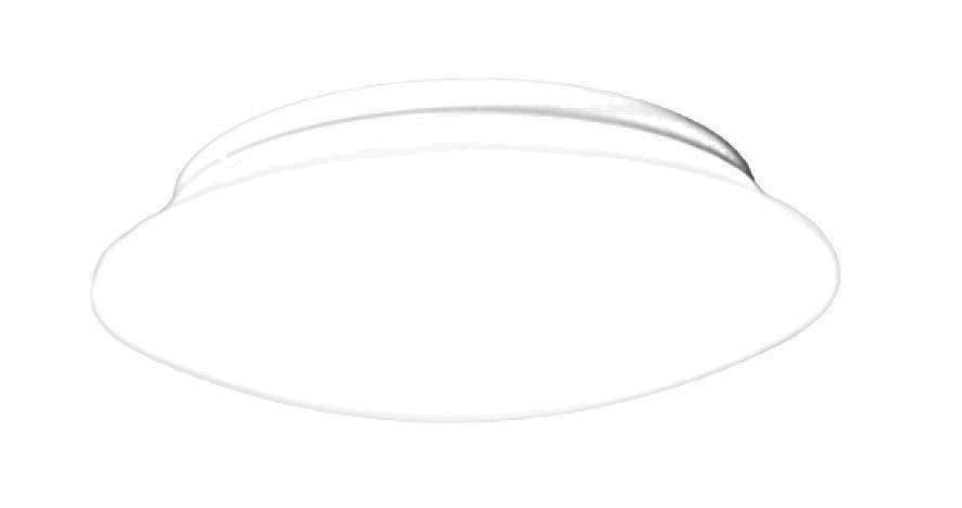

Waterproof luminaire with extruded policarbon body and opal polycarbonate diffuser. The advanced slim design without springs increases IP & IK protection and yet provides better performance than regular waterproofs. Policarbon body increases cooling performance and durability to environment challenges.
Technical Drawing
Features
| Mechanical |
| Body: | Extruded aluminium profile |
| End cap: | Polycarbonate |
| Installation: | Ceiling surface mounted |
| Optics: | Opal polycarbonate diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| CRI>90 |
| 100.000 hours lifetime |
| DALI |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Suspension accessory |
| Sensor applications |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degree options |
| UGR:< 22 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxH)mm. | Weight(kg.) |
| IIS-813-012-830 | 12W | 1200 | 3000K | 260×105 | 0,5 kg. |
| IIS-813-012-840 | 12W | 1230 | 4000K | 260×105 | 0,5 kg. |
| IIS-813-012-865 | 12W | 1260 | 6500K | 260×105 | 0,5 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxH)mm. | Weight(kg.) |
| IIS-813-018-830 | 18W | 1810 | 3000K | 260×105 | 0,5 kg. |
| IIS-813-018-840 | 18W | 1870 | 4000K | 260×105 | 0,5 kg. |
| IIS-813-018-865 | 18W | 1930 | 6500K | 260×105 | 0,5 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxH)mm. | Weight(kg.) |
| IIS-813-028-830 | 28W | 2810 | 3000K | 260×105 | 0,5 kg. |
| IIS-813-028-840 | 28W | 2870 | 4000K | 260×105 | 0,5 kg. |
| IIS-813-028-865 | 28W | 2930 | 6500K | 260×105 | 0,5 kg. |
