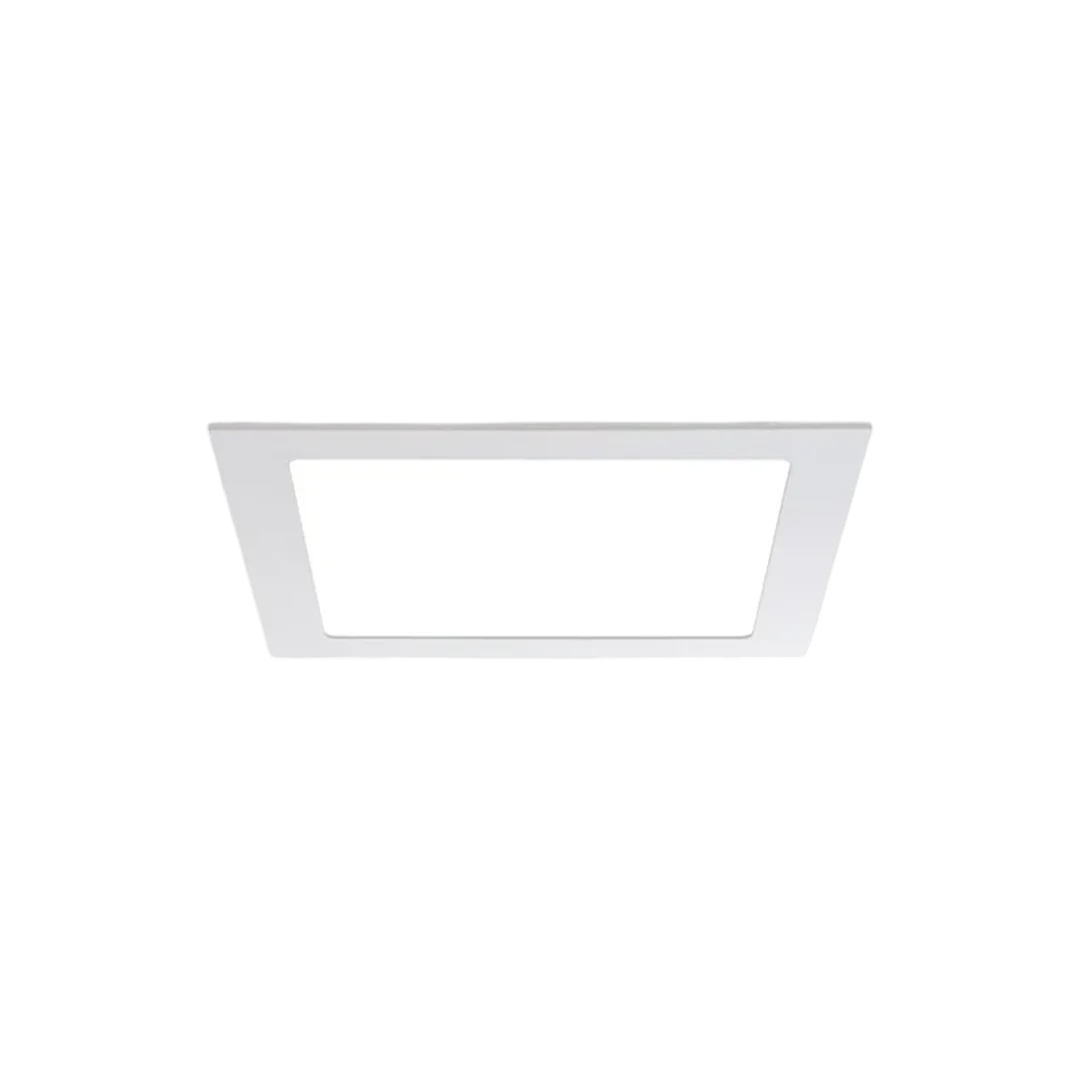

Metis-E

Name: Metis-E
SKU: IDS-562

SKU: IDS-562 Categories: Downlights, Interior

Economical solution downlights with slim structure and high lumen output. Aluminium body for ideal heat transfer

Mechanical

Body:	Aluminium
Finish:	Electrostatic powder painted
Installation:	Ceiling recessed
Diffuser:	Opal plexiglass diffuser

Electrical

Driver:	LED driver with external connection
Light Source:	SMD LED
Frequency:	220-240V 50/60 Hz
Lifetime:	50.000 hours Pf>0.90
Operating Temperature:	-20 / +50 Pf>0.90

Options:

RAL selection

DALI

0-10V / 1-10V

Emergency kit / CBS connection

GST connector

Optical:

Beam angle: 120 degrees

UGR:< 21

CRI>80

McAdams Step<3

Technical Chart

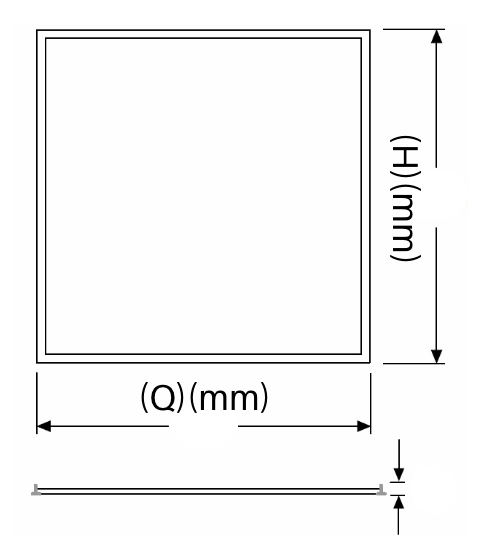

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxHxD)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-562-003-827	3W	263	2700K	85x85x10	74	0,12 kg.
IDS-562-003-830	3W	270	3000K	85x85x10	74	0,12 kg.
IDS-562-003-840	3W	280	4000K	85x85x10	74	0,12 kg.
IDS-562-003-865	3W	290	6500K	85x85x10	74	0,12 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxHxD)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-563-006-827	6W	506	2700K	120x120x10	106	0,17 kg.
IDS-563-006-830	6W	520	3000K	120x120x10	106	0,17 kg.
IDS-563-006-840	6W	535	4000K	120x120x10	106	0,17 kg.
IDS-563-006-865	6W	550	6500K	120x120x10	106	0,17 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxHxD)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-564-009-827	9W	746	2700K	145x145x10	134	0,23 kg.
IDS-564-009-830	9W	760	3000K	145x145x10	134	0,23 kg.
IDS-564-009-840	9W	780	4000K	145x145x10	134	0,23 kg.
IDS-564-009-865	9W	795	6500K	145x145x10	134	0,23 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxHxD)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-565-012-827	12W	1008	2700K	174x174x10	154	0,30 kg.
IDS-565-012-830	12W	1020	3000K	174x174x10	154	0,30 kg.
IDS-565-012-840	12W	1050	4000K	174x174x10	154	0,30 kg.
IDS-565-012-865	12W	1090	6500K	174x174x10	154	0,30 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxHxD)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-566-015-827	15W	1310	2700K	200x200x10	182	0,37 kg.
IDS-566-015-830	15W	1340	3000K	200x200x10	182	0,37 kg.
IDS-566-015-840	15W	1370	4000K	200x200x10	182	0,37 kg.
IDS-566-015-865	15W	1410	6500K	200x200x10	182	0,37 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxH)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-567-018-827	18W	1555	2700K	225x225x10	205	0,48 kg.
IDS-567-018-830	18W	1575	3000K	225x225x10	205	0,48 kg.
IDS-567-018-840	18W	1600	4000K	225x225x10	205	0,48 kg.
IDS-567-018-865	18W	1640	6500K	225x225x10	205	0,48 kg.

Technical Chart

Art. Nr.	Power (W)	Lumen output	Colour temp.	Dimensions (QxH)(mm)	Cut-out (mm.)	Weight (kg.)
IDS-568-024-827	24W	2025	2700K	300x300x10	276	0,89 kg.
IDS-568-024-830	24W	2060	3000K	300x300x10	276	0,89 kg.
IDS-568-024-840	24W	2100	4000K	300x300x10	276	0,89 kg.
IDS-568-024-865	24W	2160	6500K	300x300x10	276	0,89 kg.
