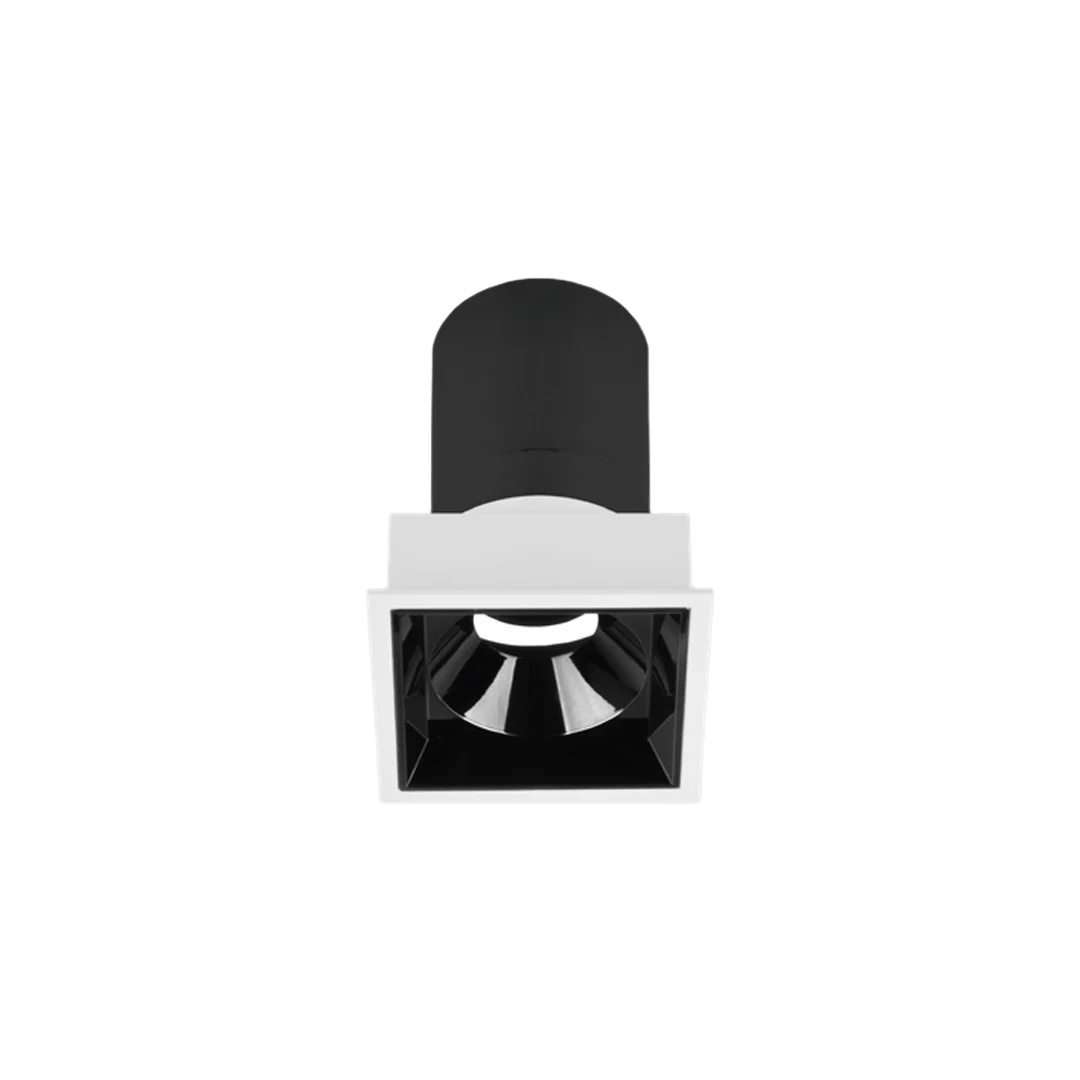

Maya
- Açıklama
Description;
- Spotlight series with various size, power and lumen output options, works perfect for design when used in a combination. Different beam angles provide light effect from narrow to flood.
Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector |
| Diffuser: | Transparent safety glass |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Ceiling recessed mounted |
| Driver: | LED driver with external connection |
| Light Source | MID POWER LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| 0-10V / 1-10V |
| Casambi |
| GST connector |
| Emergency kit / CBS connection |
| Honeycomb louvre |
| Optical: |
| Beam angle: 15-30-45 degree |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm.) | Dimensions (ØxH) (mm) |
| ISS-463-008-827 | 8 | 2700K | 780 | 0.4 kg. | 57,5×57,5 | 63×88 |
| ISS-463-008-830 | 8 | 3000K | 820 | 0.4 kg. | 57,5×57,5 | 63×88 |
| ISS-463-008-840 | 8 | 4000K | 860 | 0.4 kg. | 57,5×57,5 | 63×88 |
| ISS-463-008-865 | 8 | 6500K | 900 | 0.4 kg. | 57,5×57,5 | 63×88 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm.) | Dimensions (ØxH) (mm) |
| ISS-464-012-827 | 12 | 2700K | 1160 | 0.5 kg. | 77,5×57,5 | 84×111 |
| ISS-464-012-830 | 12 | 3000K | 1210 | 0.5 kg. | 77,5×77,5 | 84×111 |
| ISS-464-012-840 | 12 | 4000K | 1250 | 0.5 kg. | 77,5×77,5 | 84×111 |
| ISS-464-012-865 | 12 | 6500K | 1280 | 0.5 kg. | 77,5×77,5 | 84×111 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm.) | Dimensions (ØxH) (mm) |
| ISS-465-020-827 | 20 | 2700K | 2160 | 0.7 kg. | 97,5×97,5 | 105×137 |
| ISS-465-020-830 | 20 | 3000K | 2210 | 0.7 kg. | 97,5×97,5 | 105×137 |
| ISS-465-020-840 | 20 | 4000K | 2250 | 0.7 kg. | 97,5×97,5 | 105×137 |
| ISS-465-020-865 | 20 | 6500K | 2280 | 0.7 kg. | 97,5×97,5 | 105×137 |
