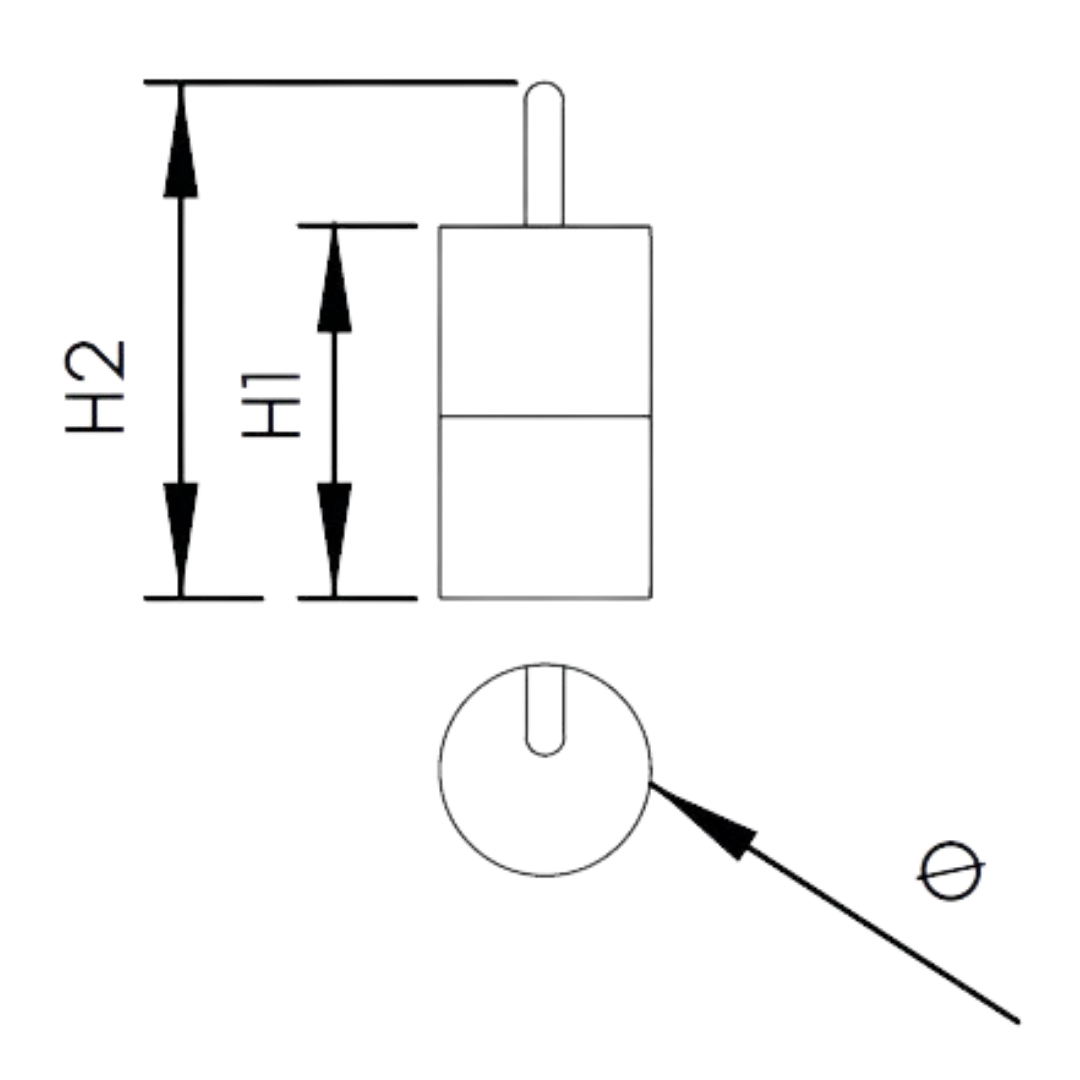

Technical Drawing
Mechanical
| Body: | Aluminium |
| Finish: | Electrostatic powder paint |
| Optics: | Aluminium reflector |
| Installation: | 48V magnetic track mounted |
Electrical
| Light Source: | COB LED |
| Frequency: | 220–240V 50/60 Hz |
| Lifetime: | 50,000 hours |
| Power Factor: | PF > 0.90 |
| Operating Temperature: | -20°C / +50°C |
Optical
| Light Effect: | Directional, 180° vertical, 350° horizontal |
| Beam Angle: | 24 degrees |
| UGR: | <21 |
| CRI: | >80 |
| McAdams Step: | <3 |
Options
| RAL Selection: | RAL selection |
| CRI Option: | CRI > 90 |
| Dimming: | DALI |
| Control: | Casambi – Bluetooth control |
Technical Chart
| Art. No. | Power (W) | Lumen | Colour Temp (K) | Dimensions (Q×H1×H2) mm | Cut-out (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| IMS-303-007 | 7W | 740* | 2700K-6500K | 35x80x120 | N/A | 0,30 kg. |
| IMS-303-012 | 12W | 1320* | 2700K-6500K | 55x120x160 | N/A | 0,50 kg. |
| IMS-303-024 | 24W | 2600* | 2700K-6500K | 60x130x170 | N/A | 0,90 kg. |
