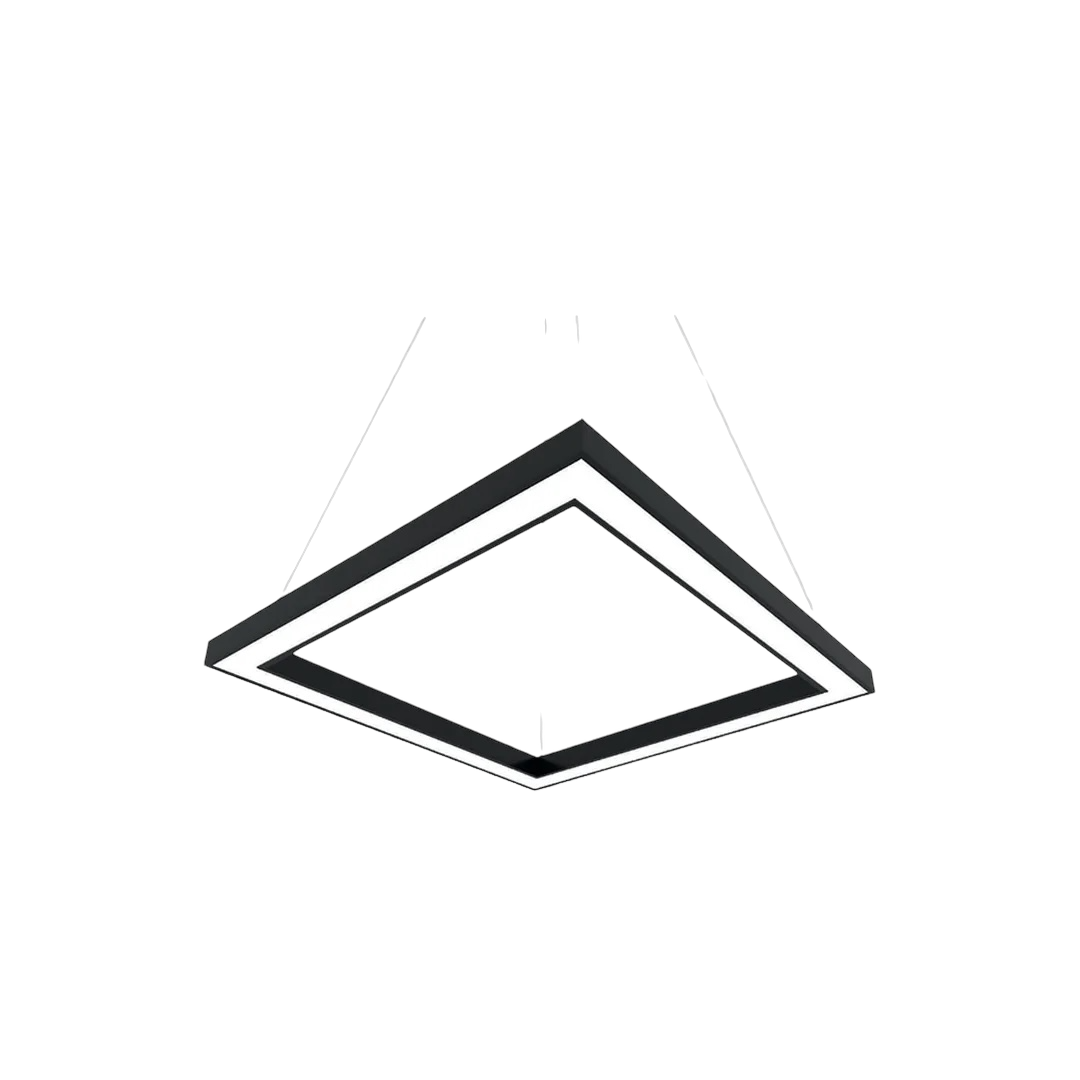

Geo III
- Açıklama
Description;
Combination of decorative and technical lighting with unique design and various customization options from dimensions to colours.
Features
| Mechanical |
| Body: | Extruded aluminium profile |
| Finish: | Electrostatic powder painted |
| Installation: | Ceiling suspended mounted |
| Optics: | Opal plexiglass diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| Tunable white |
| Micro-prismatic diffuser (UGR<19) |
| DALI |
| 0-10V / 1-10V |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Suspension accessory |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |

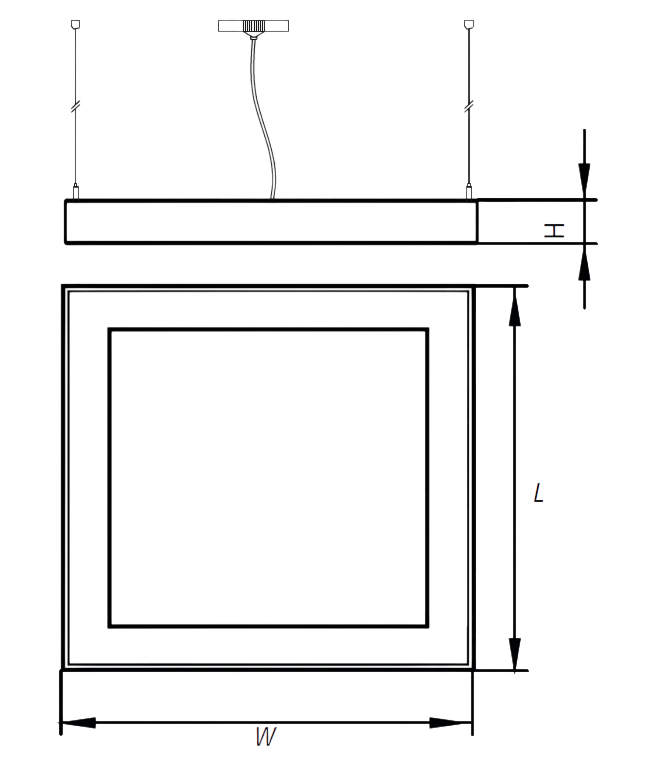

| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IDS-707-030-830 | 25W | 2500 | 3000K | 300x300x75 | 3,5kg. |
| IDS-707-030-840 | 25W | 2680 | 4000K | 300x300x75 | 3,5kg. |
| IDS-707-030-865 | 25W | 2800 | 6500K | 300x300x75 | 3,5kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IDS-707-060-830 | 50W | 5030 | 3000K | 600x600x75 | 6,8kg. |
| IDS-707-060-840 | 50W | 5150 | 4000K | 600x600x75 | 6,8kg. |
| IDS-707-060-865 | 50W | 5220 | 6500K | 600x600x75 | 6,8kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IDS-707-100-830 | 70W | 7200 | 3000K | 1000x1000x75 | 9,0kg. |
| IDS-707-100-840 | 70W | 7370 | 4000K | 1000×1000×75 | 9,0kg. |
| IDS-707-100-865 | 70W | 7500 | 6500K | 1000×1000×75 | 9,0kg. |
| IDS-700-150-S | 1,5 mt. steel wire suspension set |
