Etna-PC I
- Açıklama
Description;

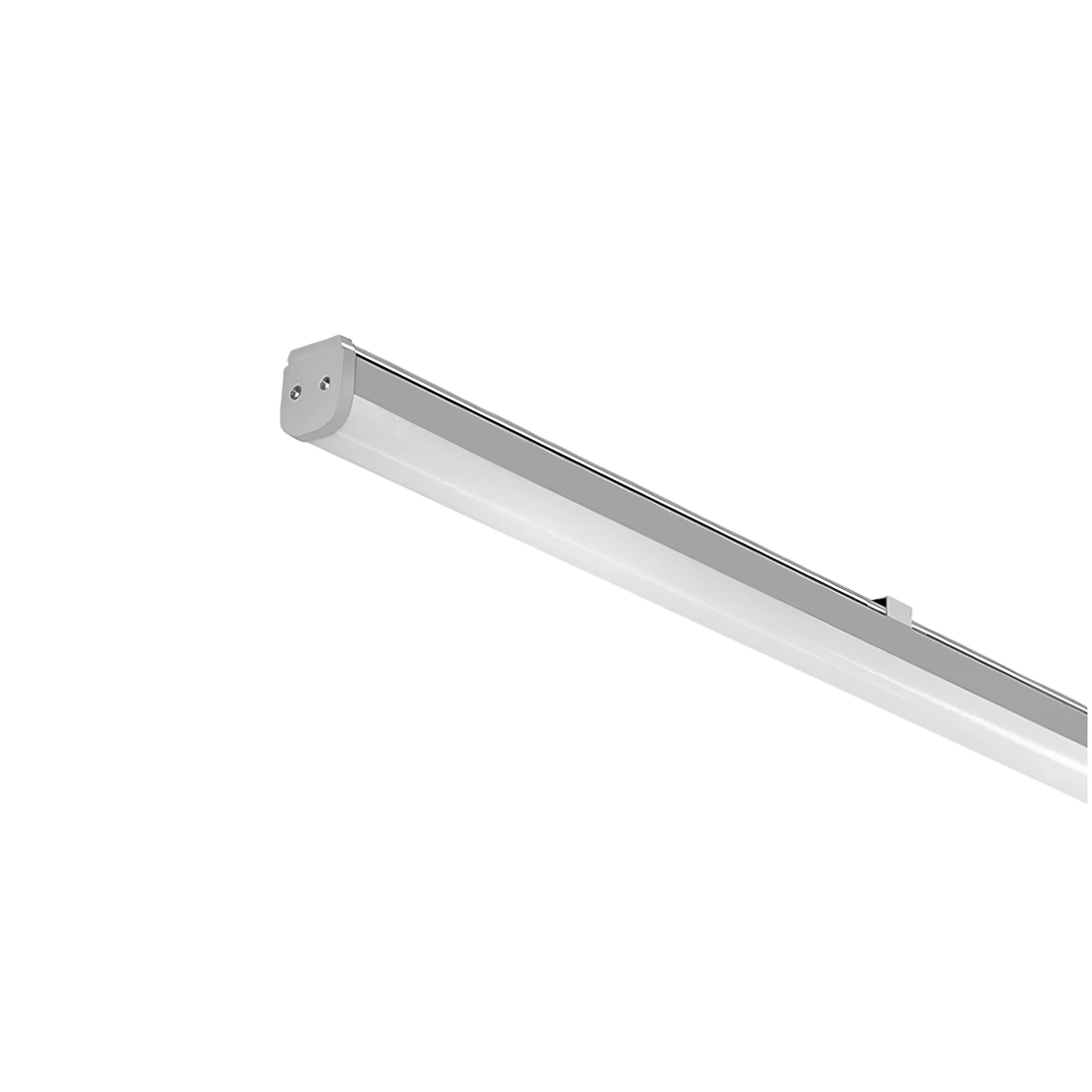

Waterproof luminaire with polycarbonate body, produced with single extrusion technology. The advanced slim design without springs increases IP & IK protection and yet provides better performance than regular waterproofs.
Features
| Mechanical |
| Body: | Single extruded polycarbonate |
| End cap: | Polycarbonate |
| Installation: | Ceiling surface mounted |
| Optics: | Opal polycarbonate diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| CRI>90 |
| 100.000 hours lifetime |
| DALI |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Suspension accessory |
| Sensor applications |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degree options |
| UGR:< 22 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxLxH)mm. | Weight(kg.) |
| IIS-804-020-830 | 20W | 2450 | 3000K | 60x600x60 | 1,0kg. |
| IIS-804-020-840 | 20W | 2600 | 4000K | 60x600x60 | 1,0kg. |
| IIS-804-020-865 | 20W | 2750 | 6500K | 60x600x60 | 1,0kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxLxH)mm. | Weight(kg.) |
| IIS-804-040-830 | 40W | 4500 | 3000K | 60x1200x60 | 1,8 kg. |
| IIS-804-040-840 | 40W | 4780 | 4000K | 60x1200x60 | 1,8 kg. |
| IIS-804-040-865 | 40W | 4910 | 6500K | 60x1200x60 | 1,8 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions(WxLxH)mm. | Weight(kg.) |
| IIS-804-060-830 | 60W | 6300 | 3000K | 60x1500x60 | 2,5 kg. |
| IIS-804-060-840 | 60W | 6650 | 4000K | 60x1500x60 | 2,5 kg. |
| IIS-804-060-865 | 60W | 6765 | 6500K | 60x1500x60 | 2,5 kg. |
| ISS-800-150-S | 1,5 mt. steel wire suspension set |
