Ece
- Açıklama
Description;

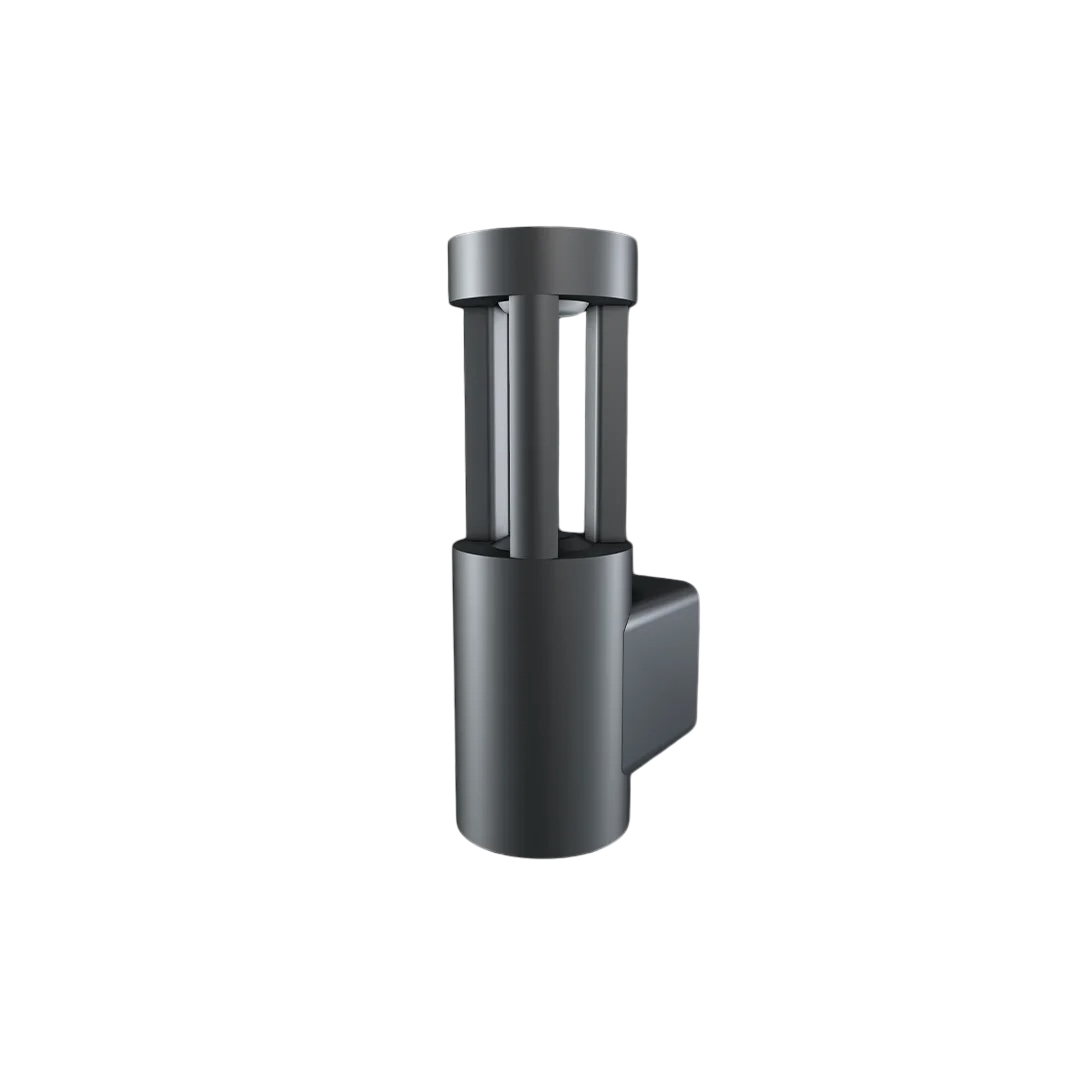

Outdoor wall mounted luminaire with down or up&down light options. Combined with the surface mounted downlight family, makes a great product for outdoor lighting design.
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | Wall surface mounted |
| Optics: | PMMA lens |
| Electrical |
| Driver: | LED driver inside the body |
| Light Source: | COB LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| Optical: |
| Beam angle: Single or up&down |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (AxBxC) (mm) |
| EUS-907-006-830 | 6 | 3000K | 485 | 1,2 Kg. | 70(W) x 220(L) x 70(H) |
| EUS-907-006-840 | 6 | 4000K | 550 | 1,2 Kg. | 70(W) x 220(L) x 70(H) |
| EUS-907-006-865 | 6 | 5000K | 610 | 1,2 Kg. | 70(W) x 220(L) x 70(H) |
