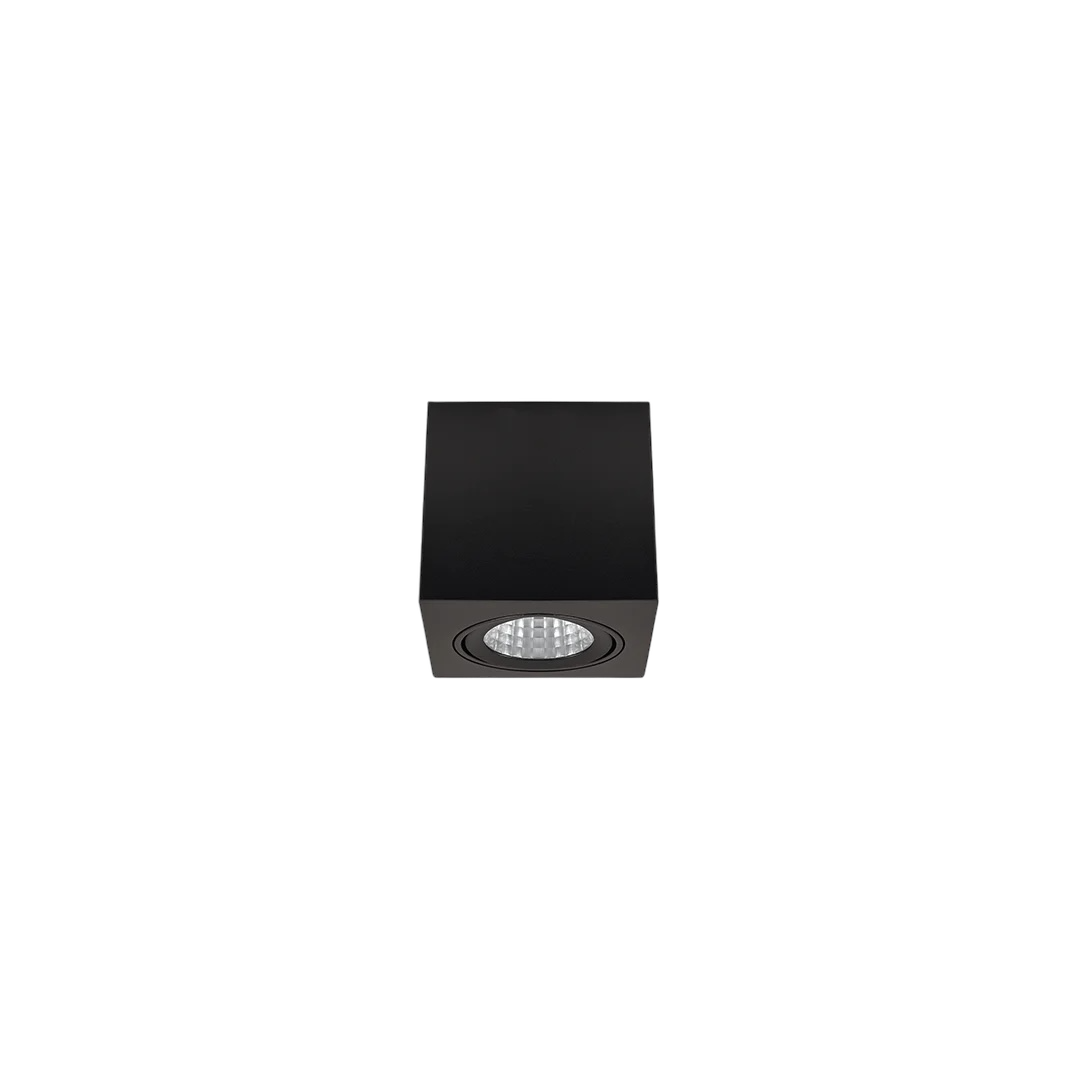

Tyana-L I

SKU: ISS-436 Categories: Interior, Spotlights

Surface mounted spotlight with an adjustable head for object lighting. Adjustable design allows a 30° vertical and 30° horizontal rotation. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.

Features:

Body:	Aluminium
Optics:	Aluminium reflector
Diffuser:	Transparent safety glass
Finish:	Electrostatic powder painted – available in required RAL color.
Installation:	Ceiling surface mounted
Driver:	Integrated LED driver
Light Source	COB LED
CRI:	CRI>80
Frequency:	220-240V 50/60 Hz.
Lifetime:	50.000 hours
Operating Temperature :	-20 / +50

Options:

RAL selection

CRI>90

CRI>97

Casambi

0-10V / 1-10V

Optical:

Beam angle: 15-30-45-60 degree

Adjustable up to 30 degrees

UGR:< 21

CRI>80

McAdams Step<3

Technical Chart

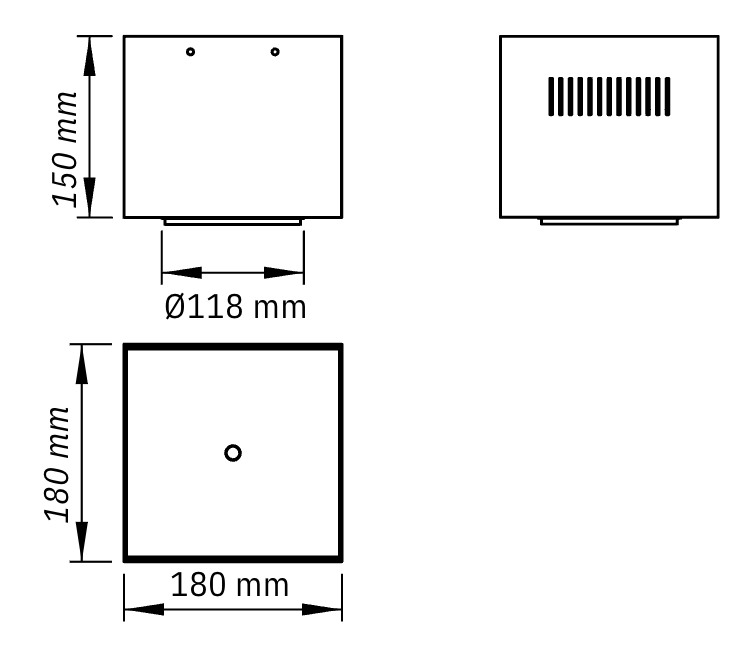

Art. Nr.	Power (W)	Colour temp.	Lumen output	Weight (kg.)	Cut-out (mm)	Dimensions (WxLxH) (mm)
ISS-436-020-827	20W	2700K	2100	1,45 kg	N/A	180x180x150
ISS-436-020-830	20W	3000K	2260	1,45 kg	N/A	180x180x150
ISS-436-020-840	20W	4000K	2400	1,45 kg	N/A	180x180x150
ISS-436-020-865	20W	6500K	2500	1,45 kg	N/A	180x180x150

Technical Chart

Art. Nr.	Power (W)	Colour temp.	Lumen output	Weight (kg.)	Cut-out (mm)	Dimensions (WxLxH) (mm)
ISS-436-030-827	30W	2700K	3000	1,45 kg	N/A	180x180x150
ISS-436-030-830	30W	3000K	3150	1,45 kg	N/A	180x180x150
ISS-436-030-840	30W	4000K	3300	1,45 kg	N/A	180x180x150
ISS-436-030-865	30W	6500K	3420	1,45 kg	N/A	180x180x150

Technical Chart

Art. Nr.	Power (W)	Colour temp.	Lumen output	Weight (kg.)	Cut-out (mm)	Dimensions (WxLxH) (mm)
ISS-436-040-827	40W	2700K	3900	1,45 kg	N/A	180x180x150
ISS-436-040-830	40W	3000K	4050	1,45 kg	N/A	180x180x150
ISS-436-040-840	40W	4000K	4300	1,45 kg	N/A	180x180x150
ISS-436-040-865	40W	6500K	4460	1,45 kg	N/A	180x180x150
