Side I
- Açıklama
Description;

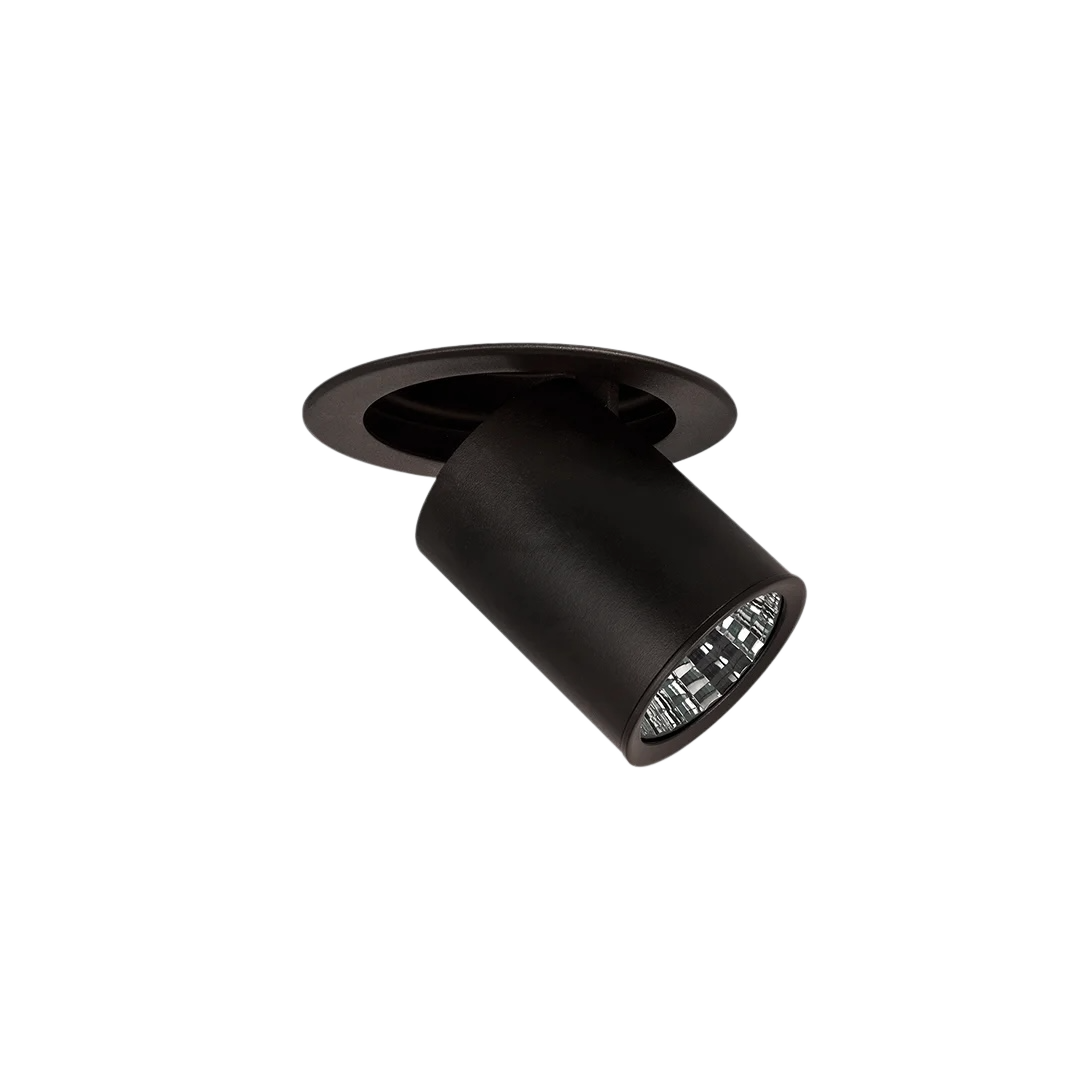

- Recessed spot light with adjustable – trackable head for object lighting. Adjustable design allows a 350° vertical and 80° horizontal rotation. Aluminium reflector with facet structure provides high efficiency and glare control. Different beam angles provide light effect from narrow to flood.
Technical Drawing
| Features: |
| Body: | Aluminium |
| Optics: | Aluminium reflector |
| Diffuser: | Transparent safety glass |
| Finish: | Electrostatic powder painted – available in required RAL color. |
| Installation: | Ceiling recessed mounted |
| Driver: | LED driver external connection |
| Light Source | COB LED |
| CRI: | CRI>80 |
| Frequency: | 220-240V 50/60 Hz. |
| Lifetime: | 50.000 hours |
| Operating Temperature : | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| 0-10V / 1-10V |
| Casambi |
| GST connector |
| Emergency kit / CBS connection |
| Optical: |
| Beam angle: 15-30 degree |
| Adjustable up to 80 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Cut-out (mm) | Dimensions (ØxH) (mm) |
| ISS-423-010-827 | 10W | 2700K | 1050 | 0,4 kg | 105 | 120×132 |
| ISS-423-010-830 | 10W | 3000K | 1130 | 0,4 kg | 105 | 120×132 |
| ISS-423-010-840 | 10W | 4000K | 1200 | 0,4 kg | 105 | 120×132 |
| ISS-423-010-865 | 10W | 6500K | 1250 | 0,4 kg | 105 | 120×132 |
