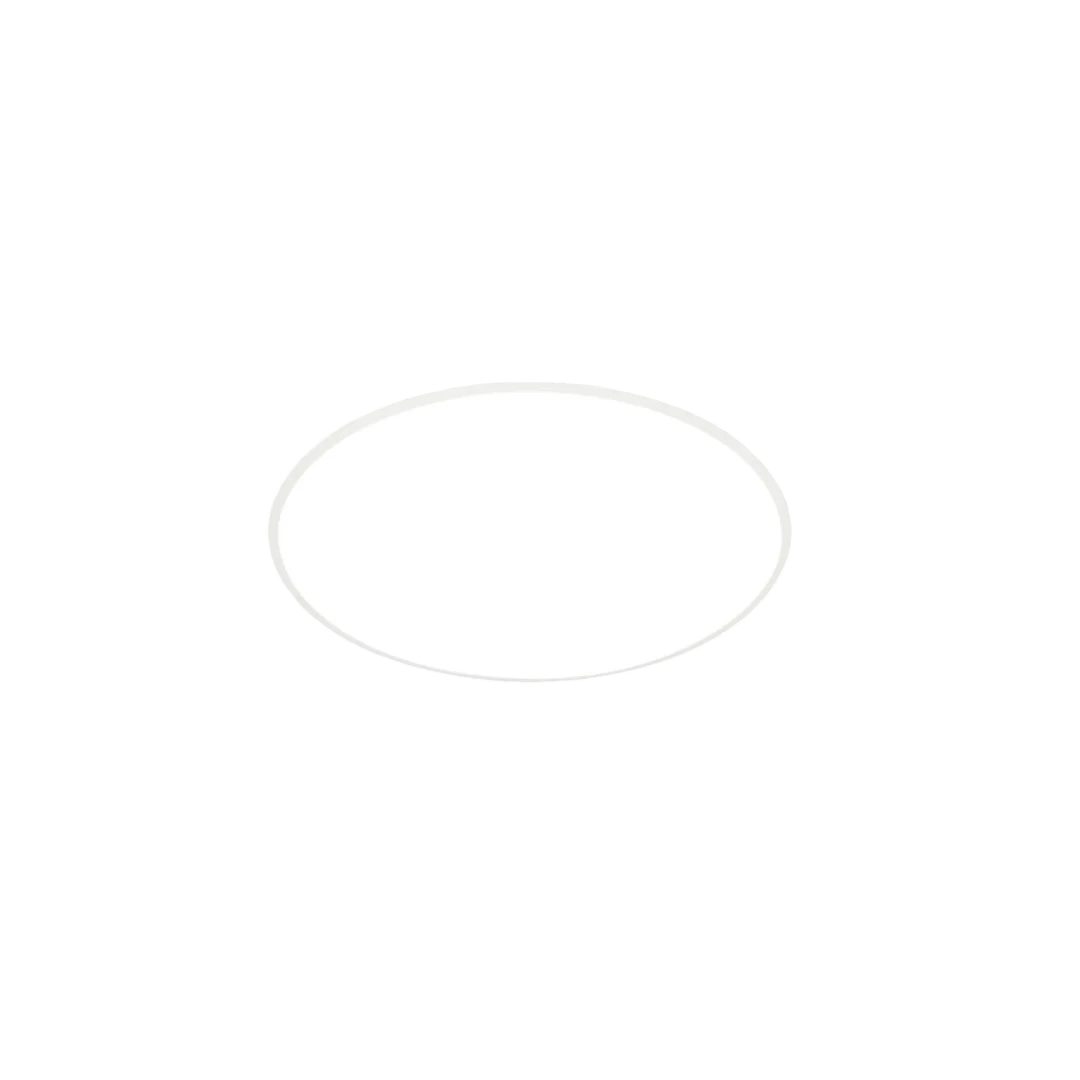

Circus-R
- Açıklama
Description;
Linear lighting solution with endless options from customized lengths to beam angles and down or up&down light features. Designed as a one stop product for all needs of linear lighting.
Features
| Mechanical |
| Body: | DKP |
| Finish: | Electrostatic powder painted |
| Installation: | Ceiling recessed |
| Optics: | Opal plexiglass diffuser |
| Electrical |
| Light Source | SMD LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| Tunable white |
| Micro-prismatic diffuser (UGR<19) |
| DALI |
| 0-10V / 1-10V |
| Emergency kit / CBS connection |
| Watt-lumen options |
| Suspension accessory |
| Optical: |
| Light Output: Direct |
| Beam angle: 120 degrees |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |

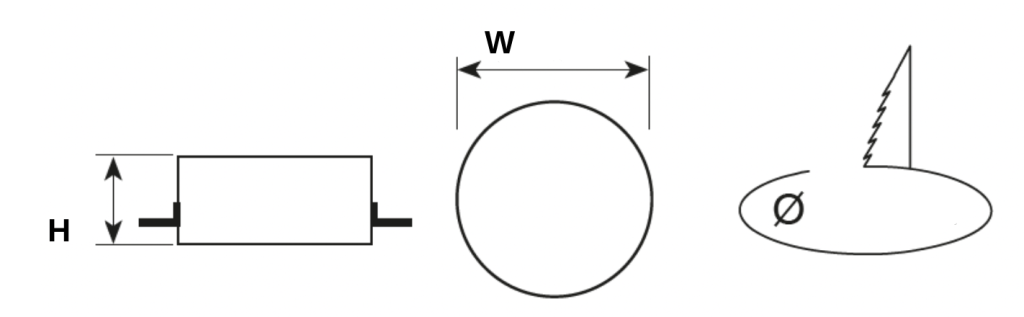

| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IAS-722-020-827 | 20W | 2000 | 2700K | 300×95 | 1,6 kg. |
| IAS-722-020-830 | 20W | 2100 | 3000K | 300×95 | 1,6 kg. |
| IAS-722-020-840 | 20W | 2200 | 4000K | 300×95 | 1,6 kg. |
| IAS-722-020-865 | 20W | 2300 | 6500K | 300×95 | 1,6 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IAS-722-028-827 | 28W | 2800 | 2700K | 400×95 | 1,8 kg. |
| IAS-722-028-830 | 28W | 2850 | 3000K | 400×95 | 1,8 kg. |
| IAS-722-028-840 | 28W | 2900 | 4000K | 400×95 | 1,8 kg. |
| IAS-722-028-865 | 28W | 2950 | 6500K | 400×95 | 1,8 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxWxH) (mm) | Weight(kg.) |
| IAS-722-040-827 | 40W | 4000 | 2700K | 650×95 | 2,0 kg. |
| IAS-722-040-830 | 40W | 4050 | 3000K | 650×95 | 2,0 kg. |
| IAS-722-040-840 | 40W | 4100 | 4000K | 650×95 | 2,0 kg. |
| IAS-722-040-865 | 40W | 4150 | 6500K | 650×95 | 2,0 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IAS-722-070-827 | 70W | 7000 | 2700K | 880×95 | 2,5 kg. |
| IAS-722-070-830 | 70W | 7100 | 3000K | 880×95 | 2,5 kg. |
| IAS-722-070-840 | 70W | 7200 | 4000K | 880×95 | 2,5 kg. |
| IAS-722-070-865 | 70W | 7300 | 6500K | 880×95 | 2,5 kg. |
| Technical Chart |
| Art. Nr. | Power (W) | Lumen output | Colour temp. | Dimensions (QxH) (mm) | Weight(kg.) |
| IAS-722-100-827 | 100W | 10000 | 2700K | 1200×95 | 3,2 kg. |
| IAS-722-100-830 | 100W | 10200 | 3000K | 1200×95 | 3,2 kg. |
| IAS-722-100-840 | 100W | 10400 | 4000K | 1200×95 | 3,2 kg. |
| IAS-722-100-865 | 100W | 10600 | 6500K | 1200×95 | 3,2 kg. |
