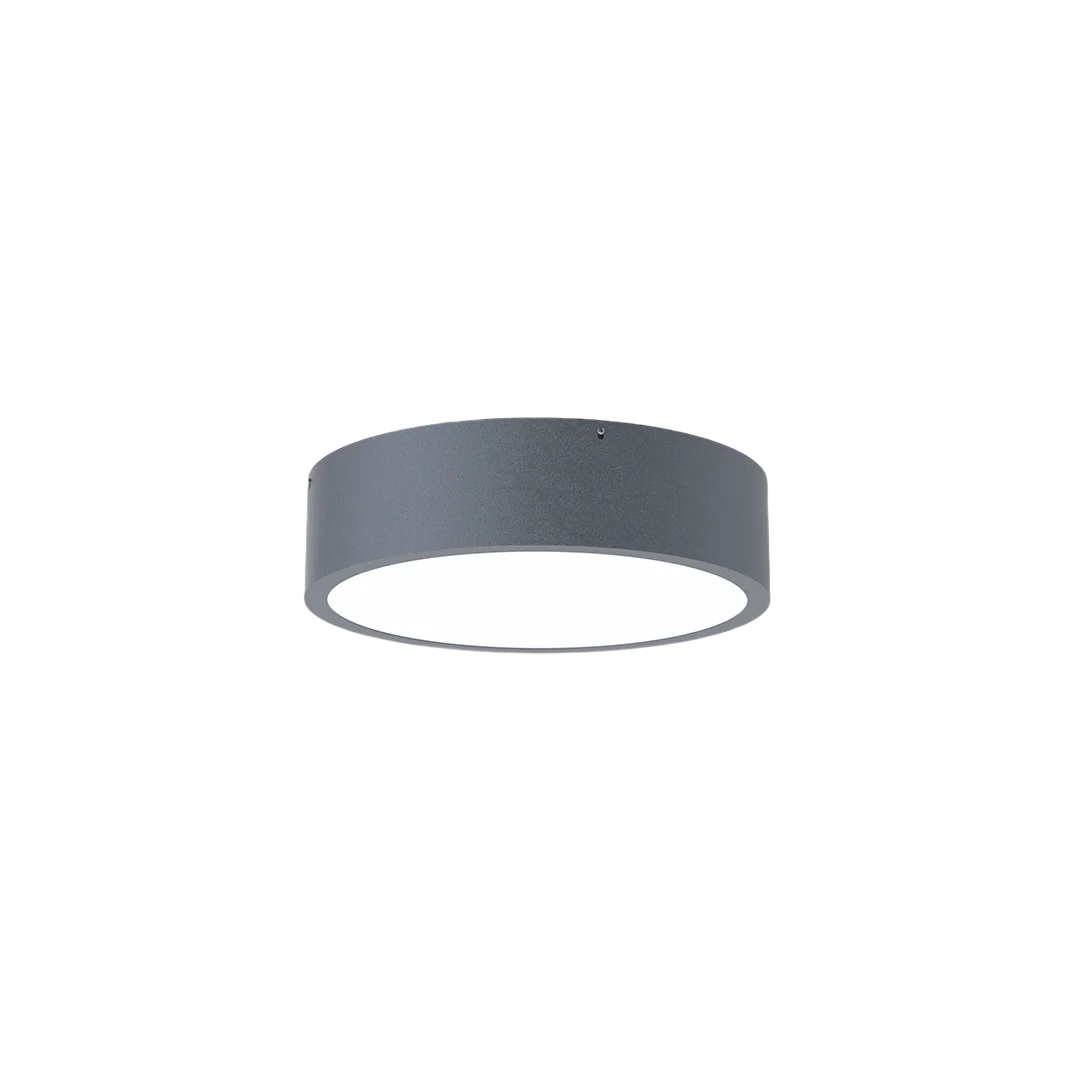

Bowl
- Açıklama
Description;
Outdoor wall mounted luminaire with down or up&down light options. Combined with the surface mounted downlight family, makes a great product for outdoor lighting design.
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | Wall surface mounted |
| Optics: | PMMA lens |
| Electrical |
| Driver: | LED driver inside the body |
| Light Source: | MİD POWER LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| Optical: |
| Beam angle: Single or up&down |
| CRI>80 |
| McAdams Step<2 |
| Technical Chart |

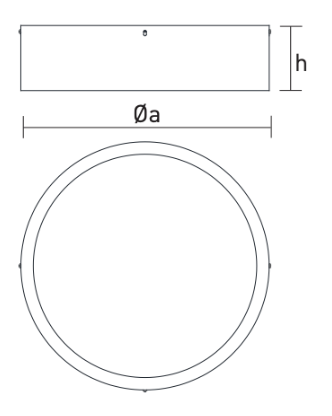

| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (QxH) (mm) |
| EUS-941-016-830 | 16W | 3000K | 1950 | 0,5 Kg. | 400×85 |
| EUS-941-016-840 | 16W | 4000K | 2050 | 0,5 Kg. | 400×85 |
| EUS-941-016-850 | 16W | 5000K | 2150 | 0,5 Kg. | 400×85 |
| EUS-941-016-865 | 16W | 6500K | 2250 | 0,5 Kg. | 400×85 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (QxH) (mm) |
| EUS-941-028-830 | 28W | 3000K | 3100 | 0,5 Kg. | 400×85 |
| EUS-941-028-840 | 28W | 4000K | 3250 | 0,5 Kg. | 400×85 |
| EUS-941-028-850 | 28W | 5000K | 3400 | 0,5 Kg. | 400×85 |
| EUS-941-028-865 | 28W | 6500K | 3550 | 0,5 Kg. | 400×85 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output | Weight (kg.) | Dimensions (QxH) (mm) |
| EUS-941-040-830 | 40W | 3000K | 4350 | 0,5 Kg. | 400×85 |
| EUS-941-040-840 | 40W | 4000K | 4450 | 0,5 Kg. | 400×85 |
| EUS-941-040-850 | 40W | 5000K | 4550 | 0,5 Kg. | 400×85 |
| EUS-941-040-865 | 40W | 6500K | 4650 | 0,5 Kg. | 400×85 |
