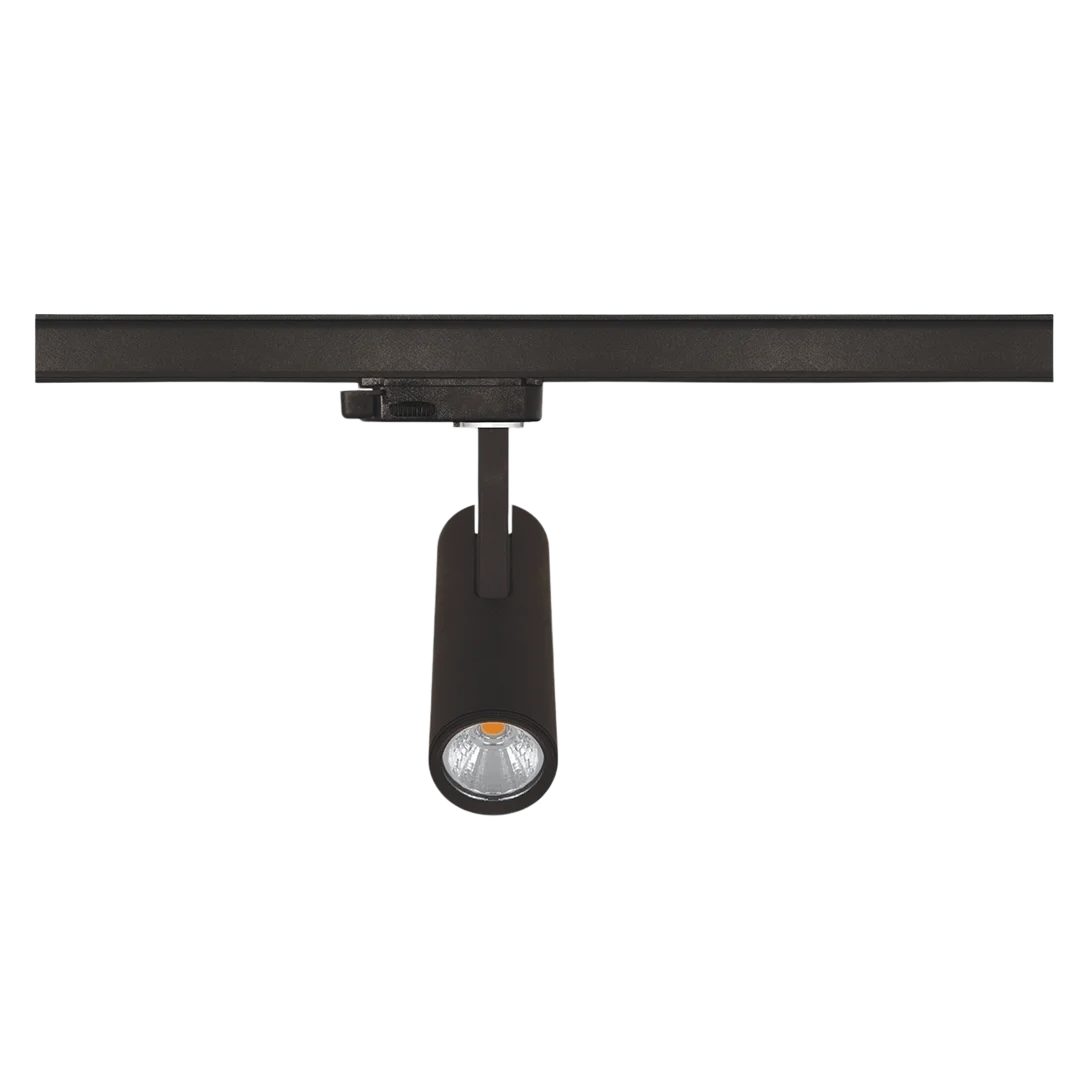

Argo S
- Açıklama

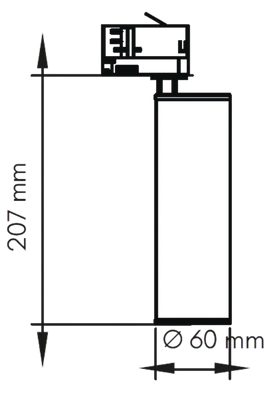

Technical Drawing
Features
| Mechanical |
| Body: | Aluminium |
| Finish: | Electrostatic powder painted |
| Installation: | 3-circuit track mounted |
| Diffuser: | Transparent safety glass |
| Optics: | Aluminium reflector |
| Electrical |
| Driver: | LED driver inside the body |
| Light Source: | COB LED |
| Frequency: | 220-240V 50/60 Hz |
| Lifetime: | 50.000 hours Pf>0.90 |
| Operating Temperature: | -20 / +50 |
| Options: |
| RAL selection |
| CRI>90 |
| CRI>97 |
| DALI |
| Casambi |
| Bluetooth control |
| Watt – lumen – efficiency options |
| Optical: |
| Beam angle: 15-30 degree options |
| UGR:< 21 |
| CRI>80 |
| McAdams Step<3 |
| Technical Chart |
| Art. Nr. | Power (W) | Colour temp. | Lumen output* | Weight (kg.) | Dimensions (ØxH) (mm) |
| ITL-105-010-827 | 10W | 2700K | 900 | 0,5 Kg. | 85×195 |
| ITL-105-010-830 | 10W | 3000K | 1010 | 0,5 Kg. | 85×195 |
| ITL-105-010-840 | 10W | 4000K | 1100 | 0,5 Kg. | 85×195 |
| ITL-105-010-865 | 10W | 6500K | 1180 | 0,5 Kg. | 85×195 |
| ITL-105-010-800 | GU10 | – | – | 0,5 Kg. | 85×195 |
